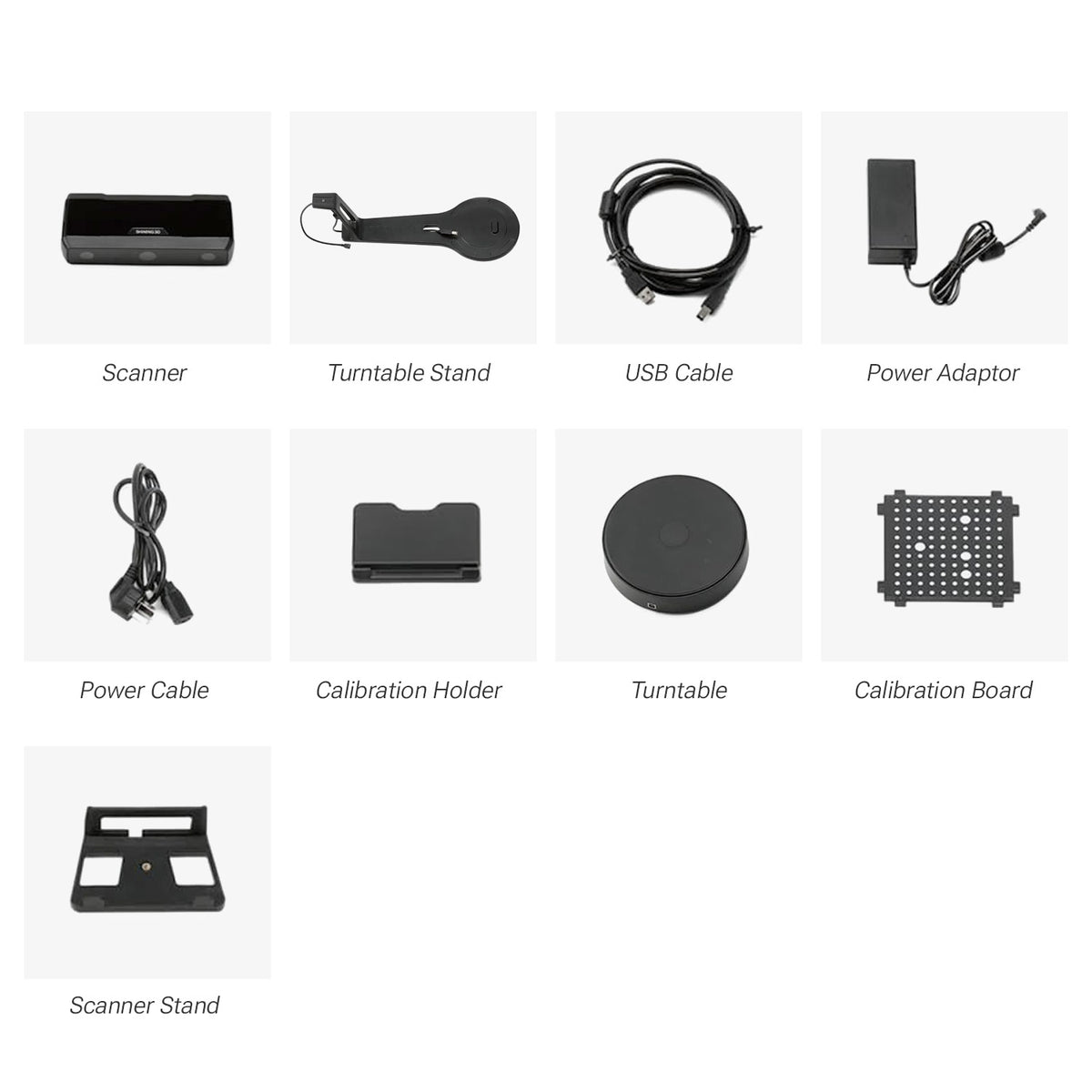

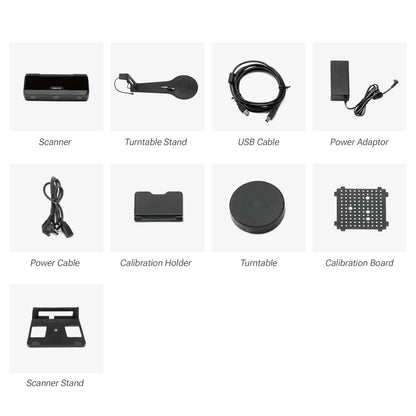

- What’s In The Box
- Specifications
- 3D Data Gallery
- How To Use
- FAQs
- Reviews

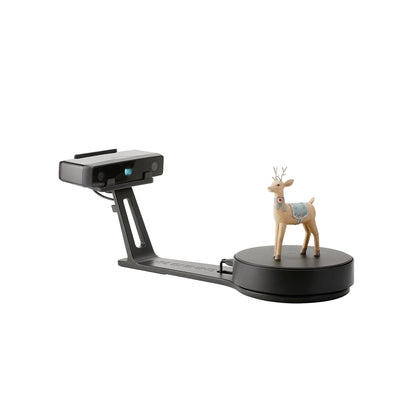

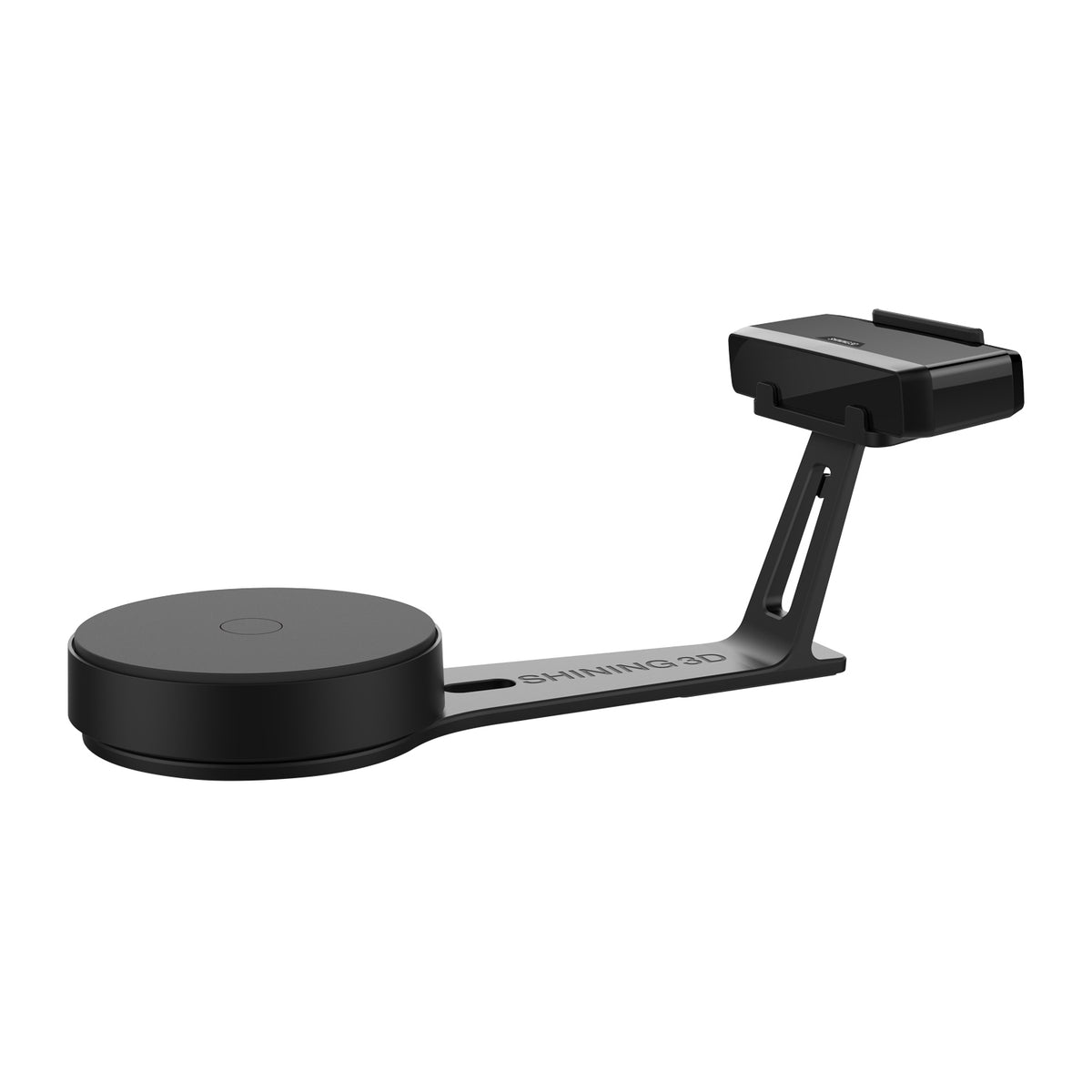

EinScan-SE V2 デスクトップ 3D スキャナー
EinScan-SE V2 3Dスキャナーは、教育者や個人にとって強力なパートナーです
高品質データ
EinScan-SE V2は、すべてのスキャンで高品質の 3D データを生成します。
より広い3Dスキャン範囲
EinScan-SE V2 最小スキャンボリューム: 30mm * 30mm * 30mm
EinScan-SE V2 最大スキャンボリューム: 700mm *7000mm *700mm
豊富な後処理機能
EinScan-SE のソフトウェアには、穴埋め、スムージング、シャープニングの機能があり、後処理プロセスでデータ座標を再調整して、後続のアプリケーションにより完璧な 3D データを提供することもできます。
細部までこだわった
3Dプリンターに対応
完全な 3D データへの自動メッシュ作成。
合理化されたユーザーエクスペリエンス
A powerful companion for educators and individuals

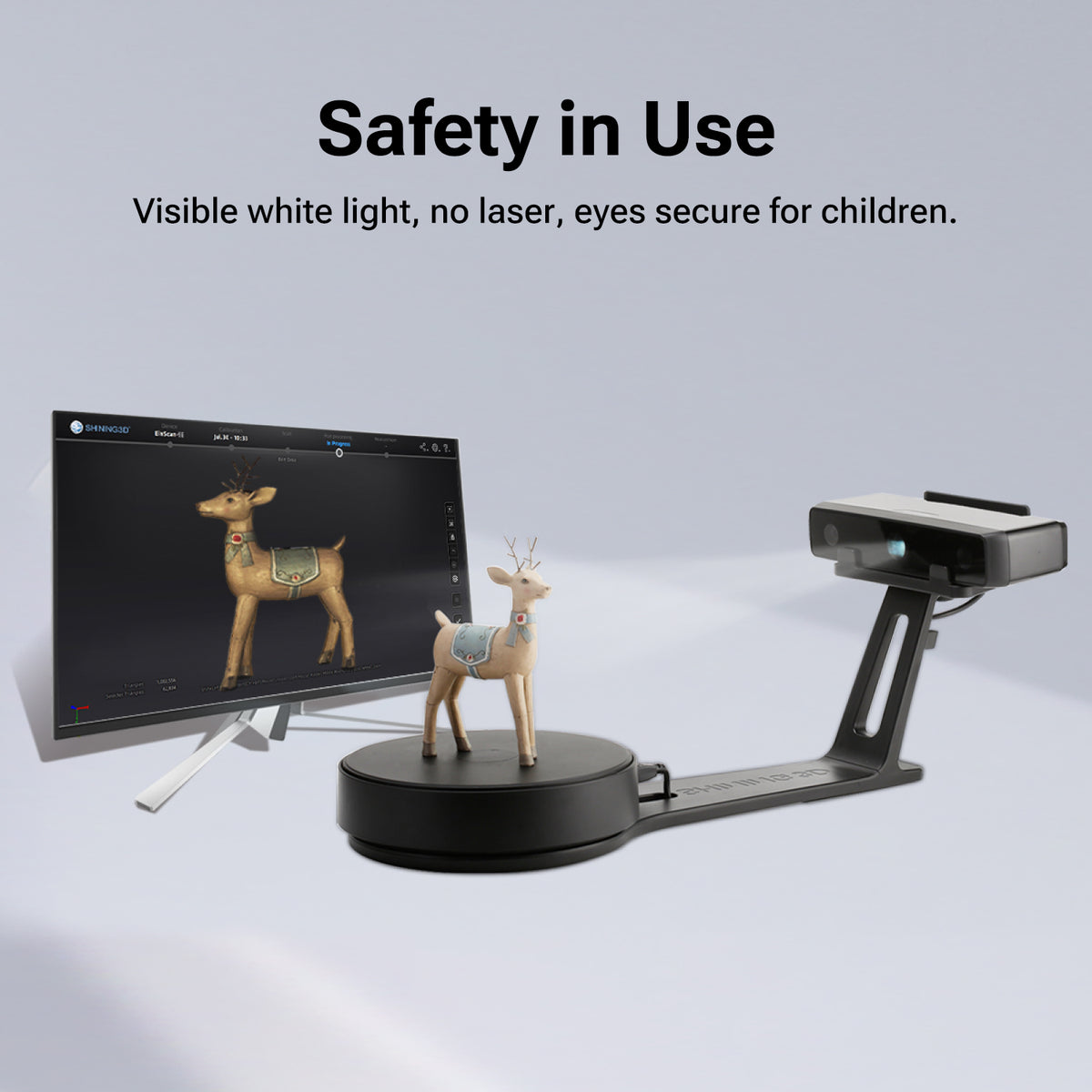

Safety in Use
Visible white light, no laser, eyes secure for children.
Fine Details
Every scan generates a high-quality 3D data.
Reconstruct the real geometry of the object with fine details.

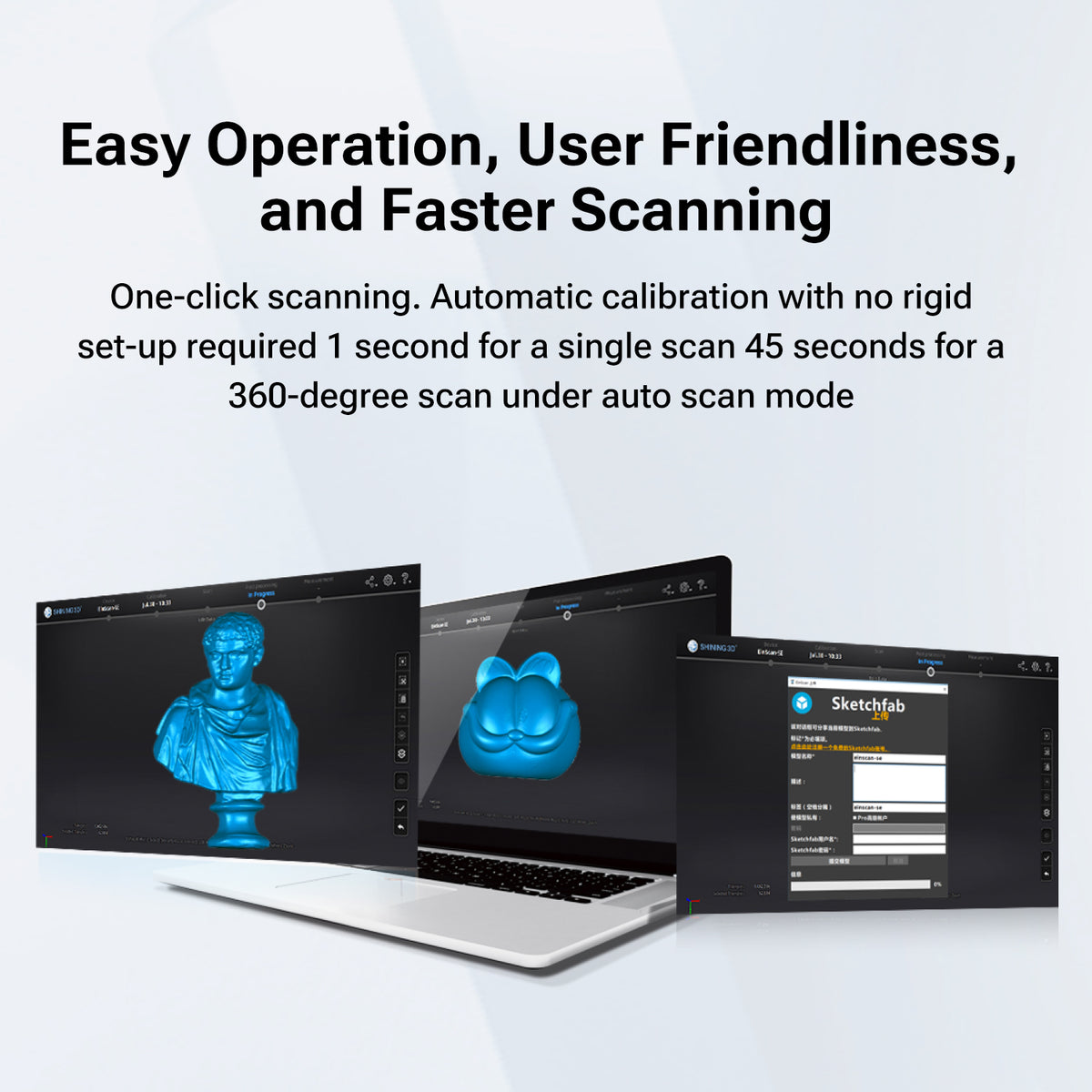

Easy Operation, User Friendliness, and Faster Scanning
- One-click scanning
- Automatic calibration with no rigid set-up required
- 1 second for a single scan
- 45 seconds for a 360-degree scan under auto scan mode

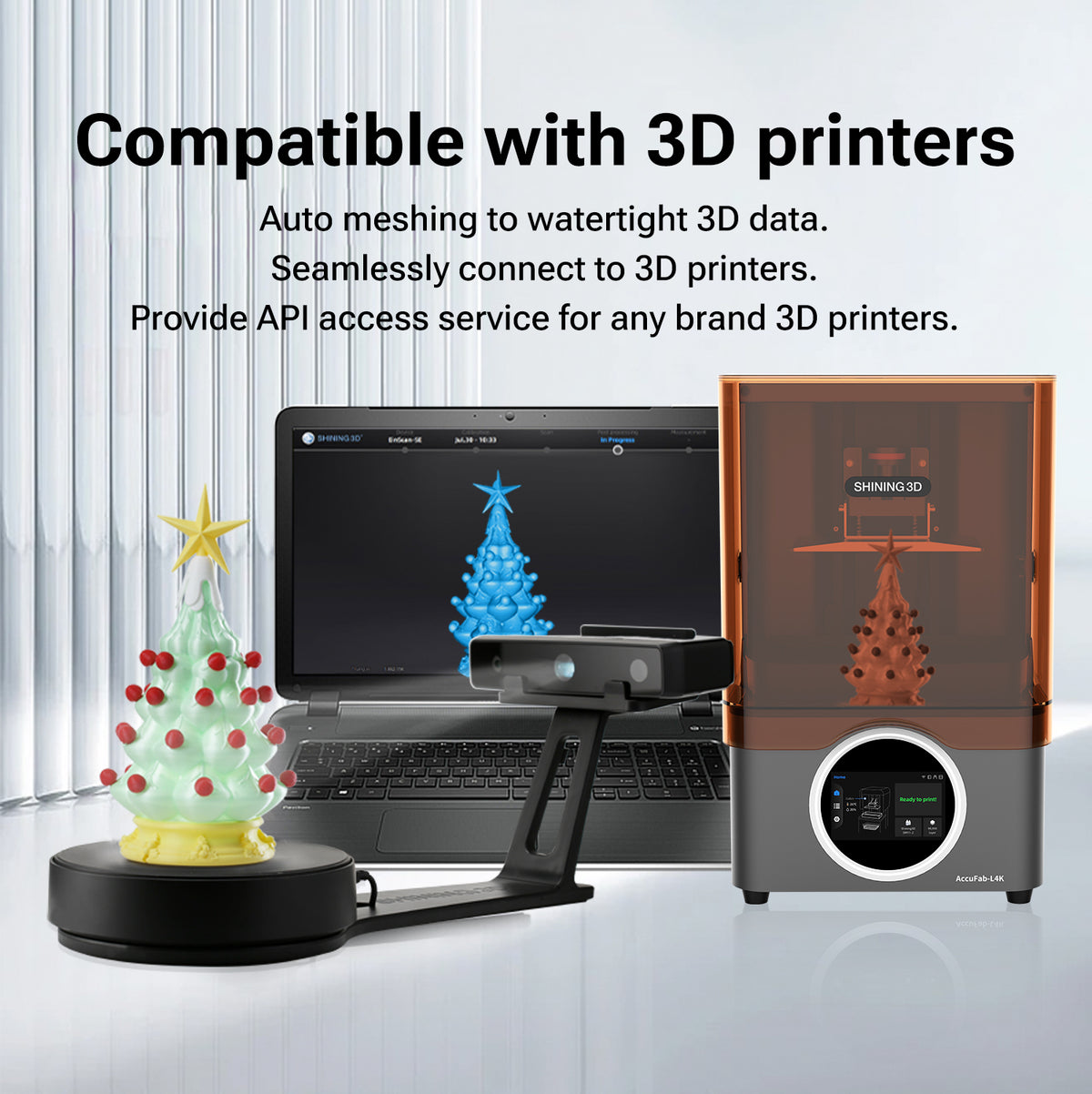

Compatible with 3D printers
- Auto meshing to watertight 3D data
- Seamlessly connect to 3D printers
- Provide API access service for any brand 3D printers.

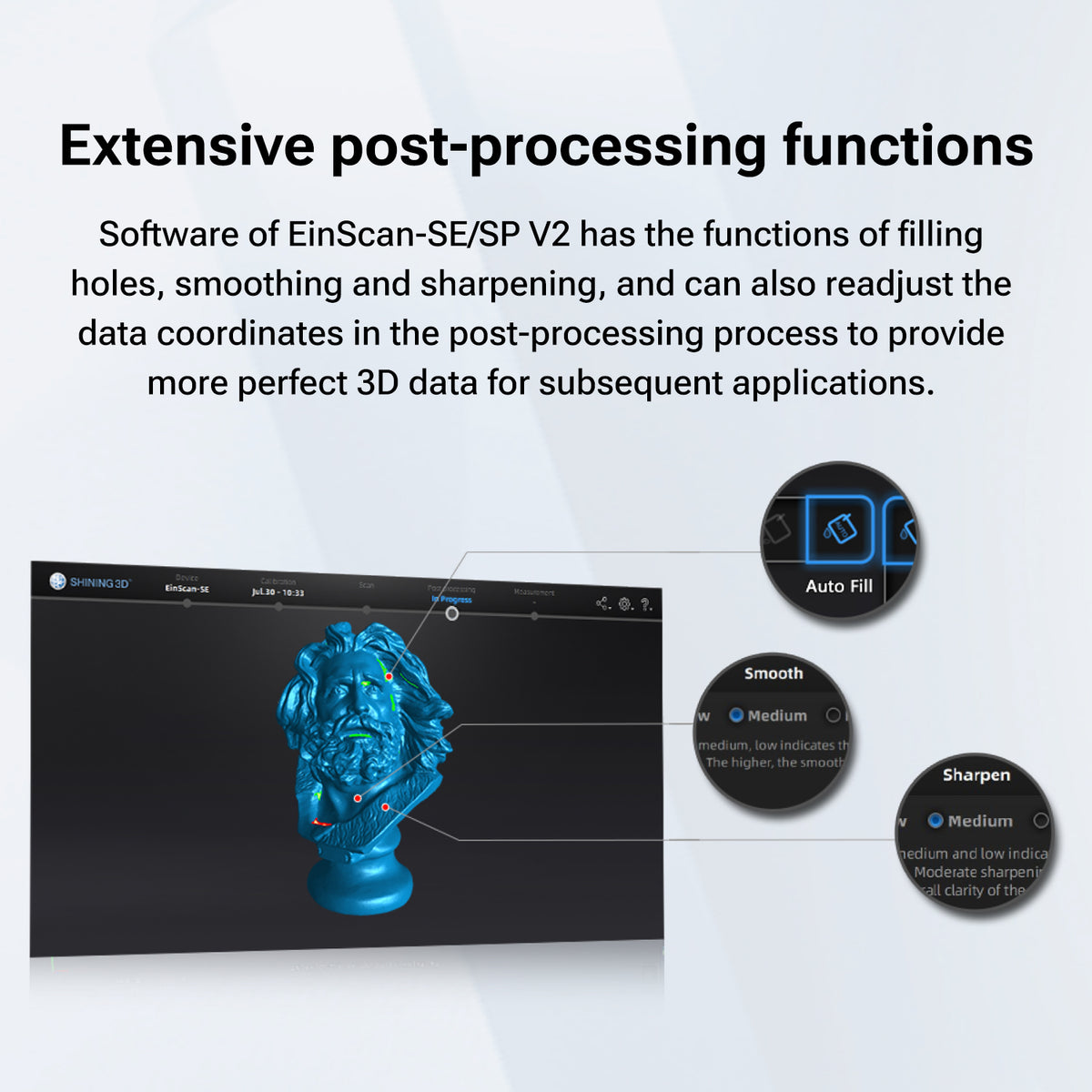

Extensive post-processing functions
Software of EinScan-SE/SP V2 has the functions of filling holes, smoothing and sharpening, and can also readjust the data coordinates in the post-processing process to provide more perfect 3D data for subsequent applications.

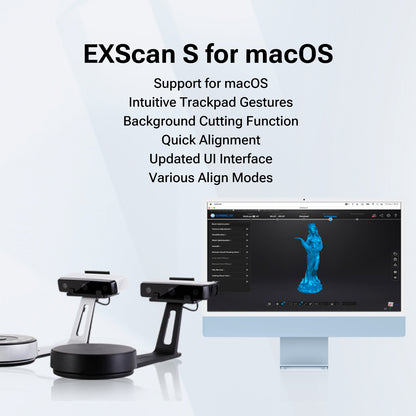

EXScan S for macOS
- Support for macOS
- Intuitive Trackpad Gestures
- Background Cutting Function
- Quick Alignment
- Updated UI Interface
- Various Align Modes
Product Specification
Fixed Scan with Turntable
Fixed Scan without Turntable
With Turntable: Feature; Manual; Turntable
Without Turntable: Feature; Manual
≤0.1 mm
200×150 mm
30 × 30 × 30 mm
With Turntable: 200×200×200 mm
Without Turntable: 700×700×700 mm
Single Shot<1 s
Turntable<45 s
0.17 mm ~ 0.2 mm
Yes
OBJ, STL, ASC, PLY, 3MF
1.3 Mega Pixels
White LED
290 ~ 480 mm
2.5 kg
USB:1 ×USB 2.0 or 3.0;
OS: Win7, 8 or 10 (64 bit);
Graphic Card: Nvidia series;
Graphic memory: ＞1G;
CPU: Dual-core i5 or higher;
Memory: ＞8G
Graphics card: NVIDIA GTX660 or higher;
Graphics memory: ＞2 G;
CPU: Dual Core I5 or higher;
Memory: ＞16 G
570×210×210 mm
40 w
DC：12 v, 3.33 A
Standard
Standard
5 kg
3D Data Gallery
FAQs
Explore the frequently asked questions and answers about our products and services.
What is the difference between turntable scanning and free scanning?
The turntable scan is done with a built-in rotating platform, while free scanning uses a tripod (which needs to be purchased separately). Free scanning has a larger range. The SEV2 does not support object marker point scanning.
Can the scanned files be directly processed?
If the scan is for engraving, it can be directly used for engraving programming and imported into an engraving machine for processing. The same goes for 3D printing; slicing software can directly operate on the STL file for 3D printing. If it's for mold processing, reverse modeling is required to generate parametric surfaces or solid models, which are then used for CNC programming.
What is the minimum and maximum object size that can be scanned?
Objects as small as 2-3 cm can be scanned. In theory, there is no maximum size (limited by computer hardware performance). The larger the object, the more difficult the operation becomes.
What are the differences between the SE V2 and SP V2 scanners?
The SP V2 is faster, has a higher accuracy of 0.05, and can recognize marker points, which reduces limitations when scanning objects.
