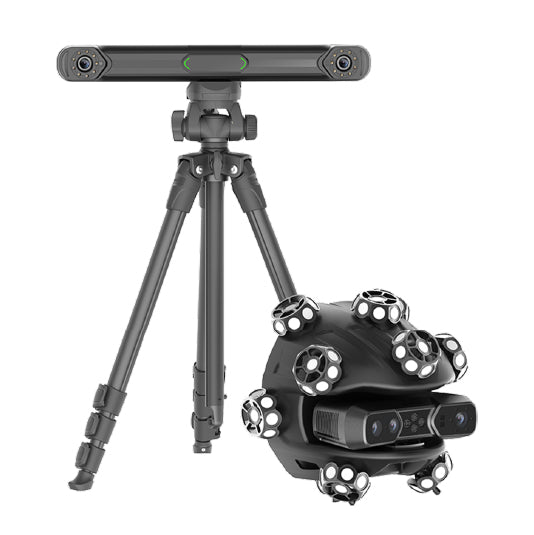

EinScan Trak Wireless Marker-Free Tracking System

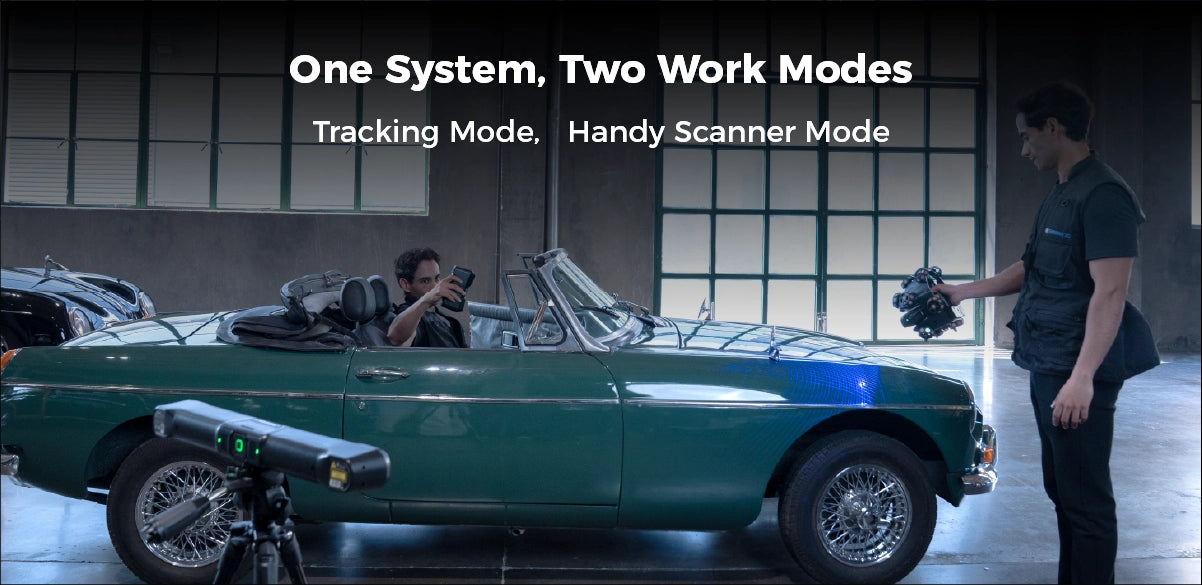

One System, Two Work Modes

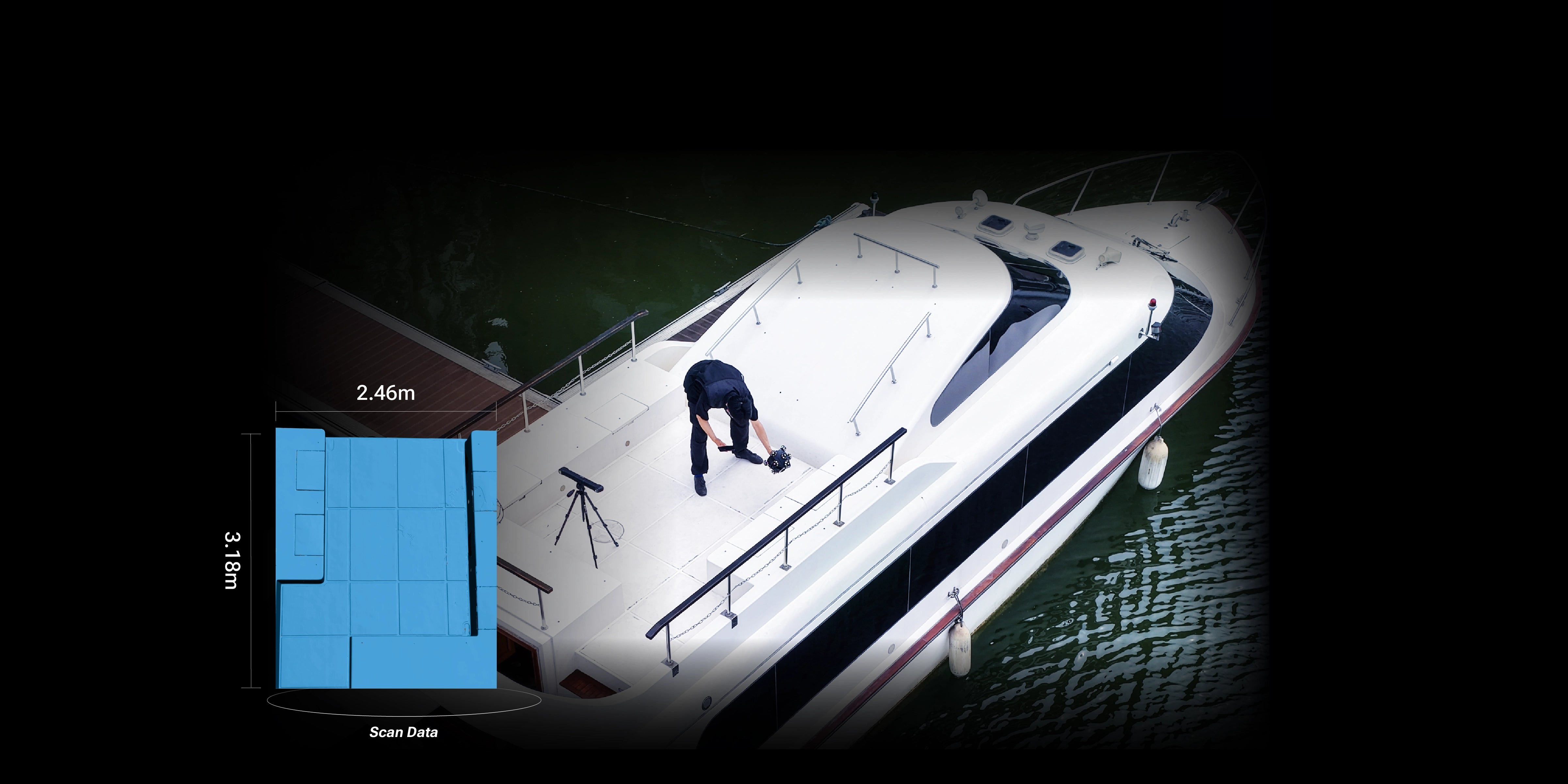

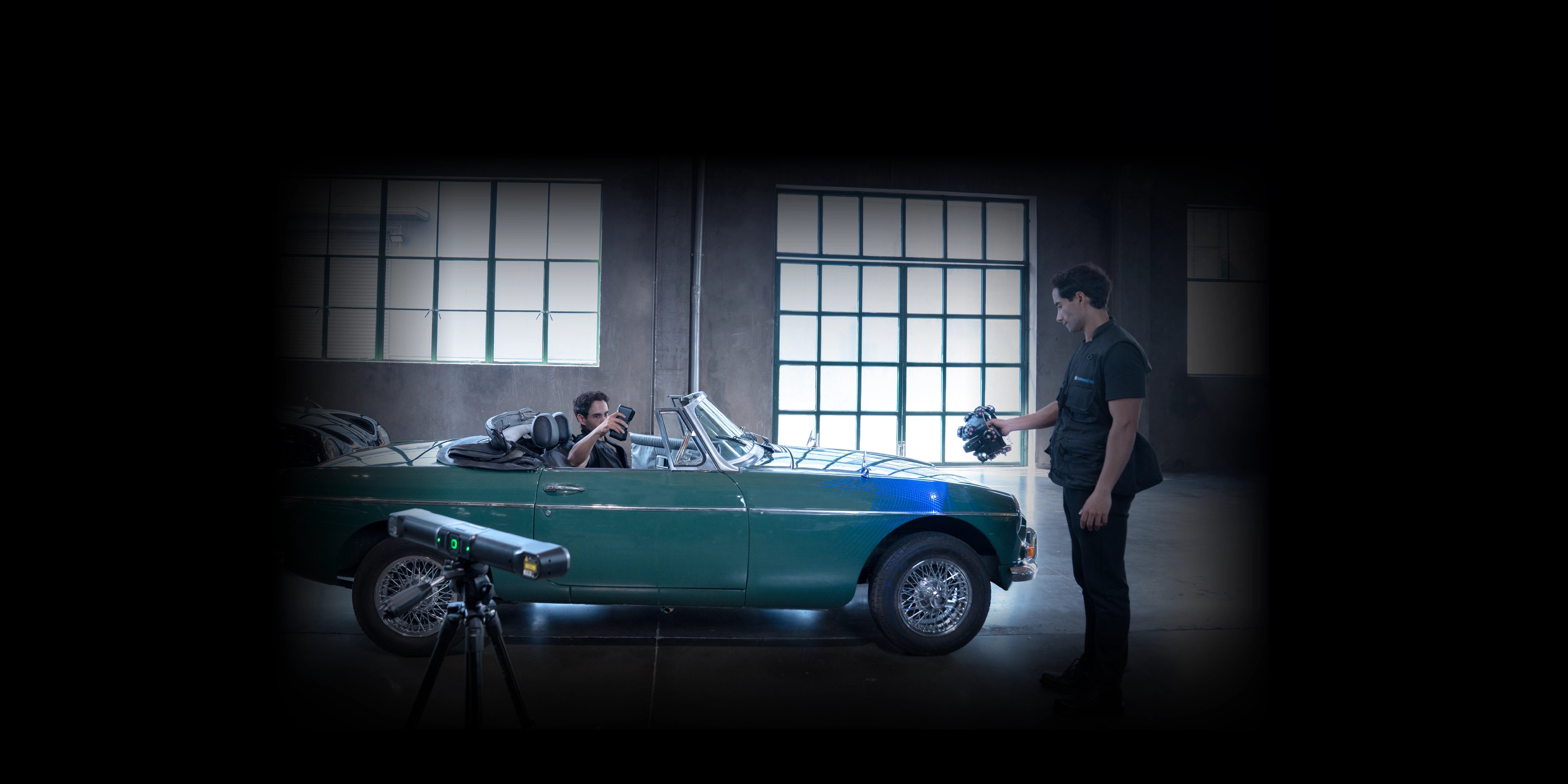

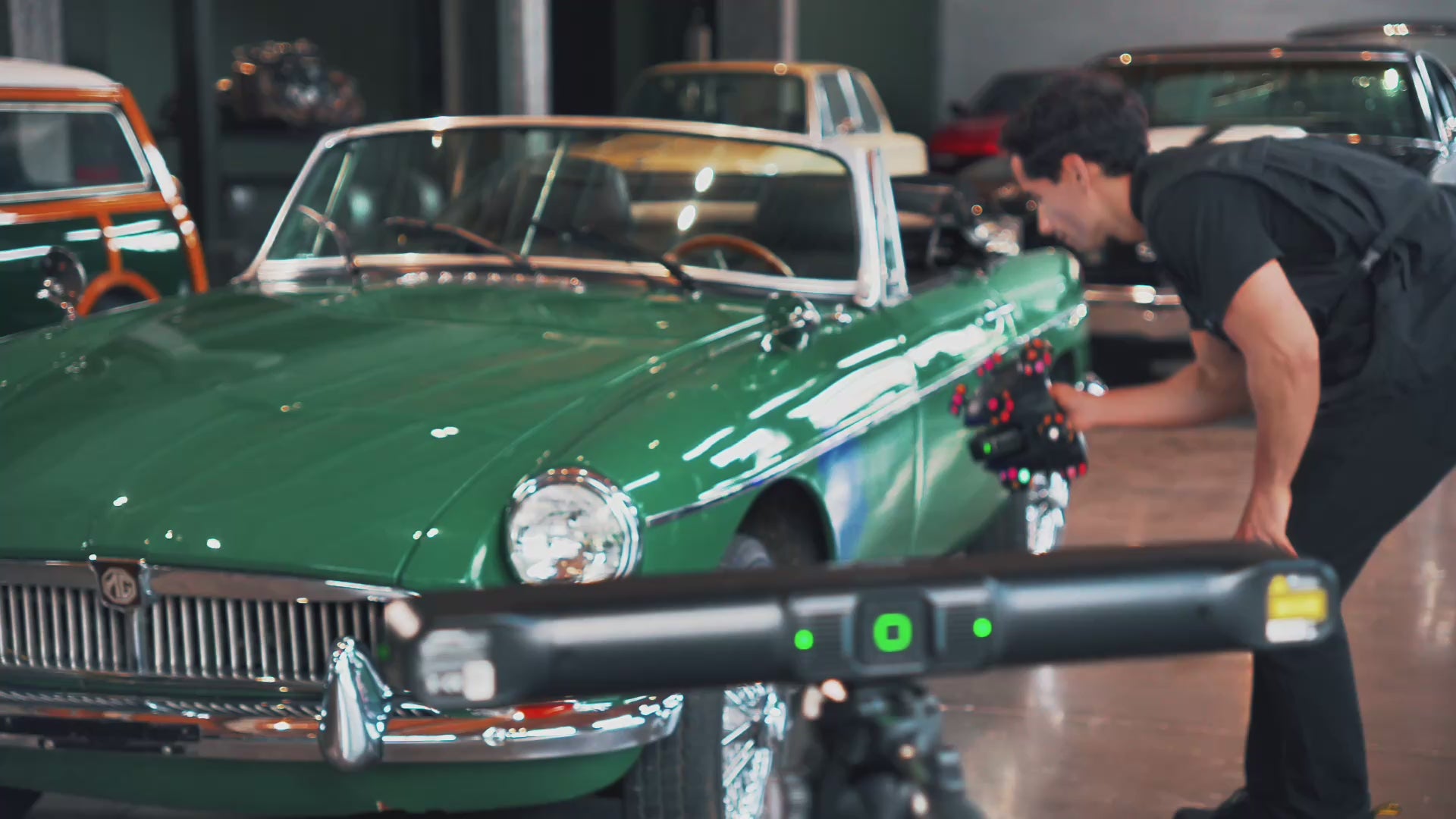

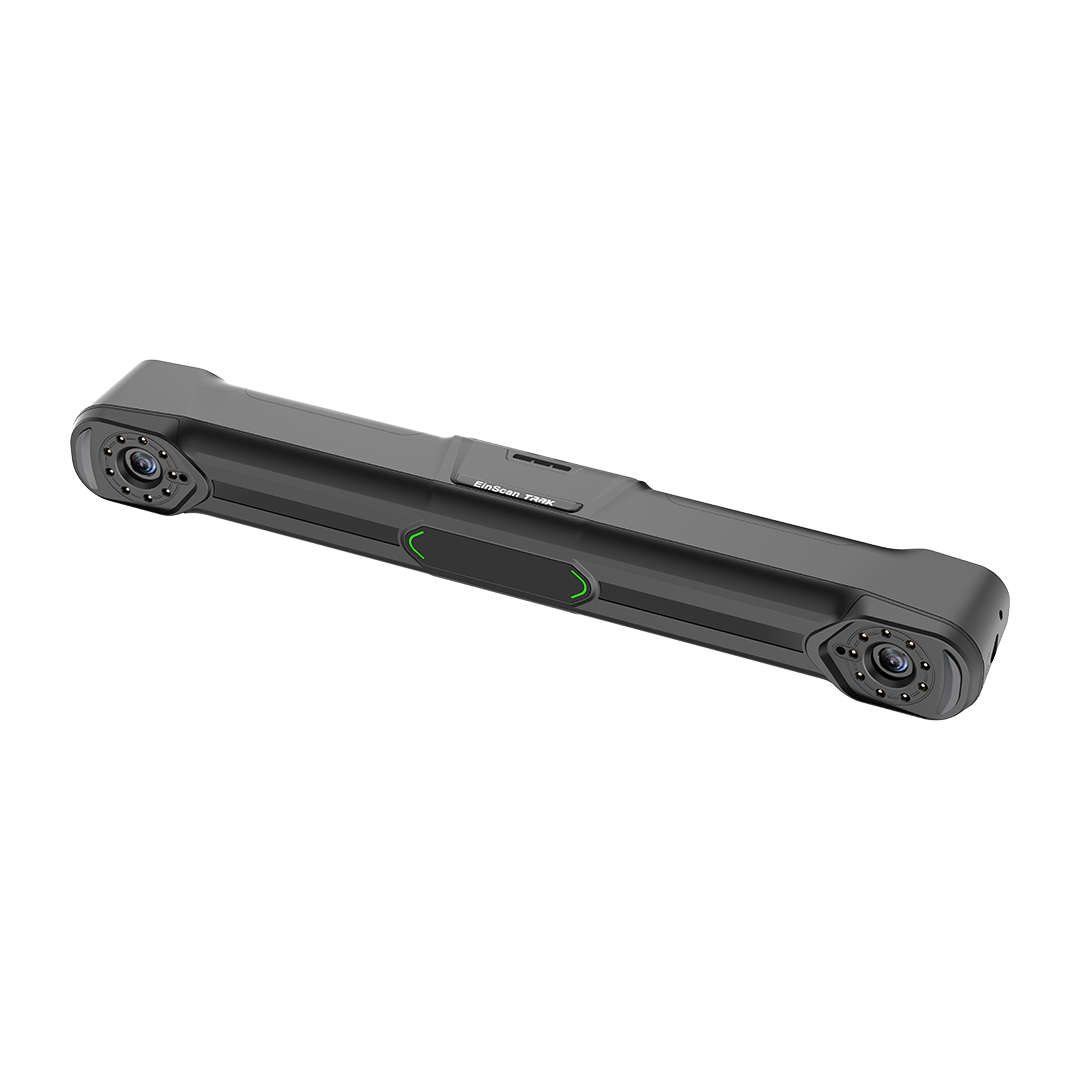

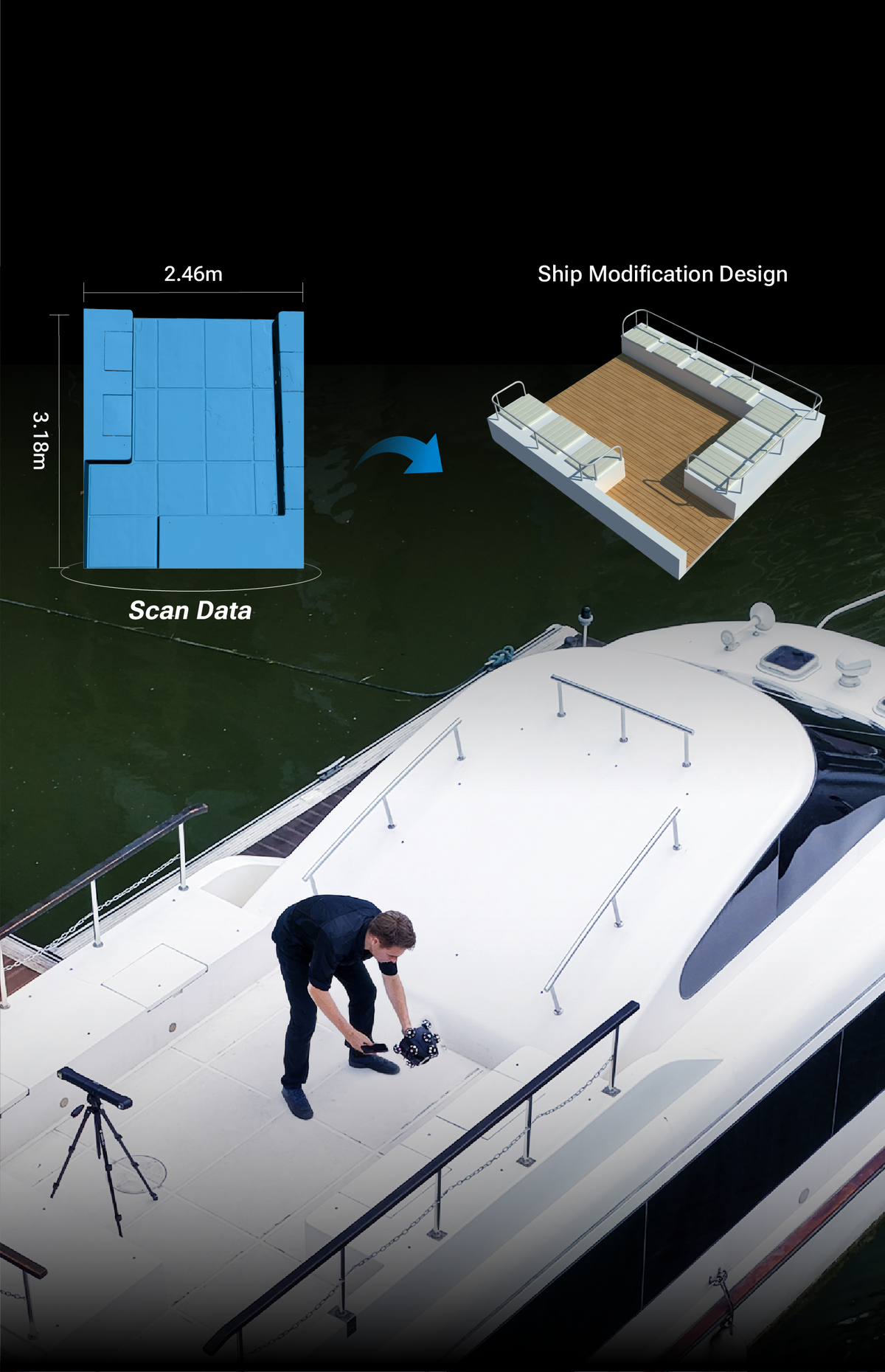

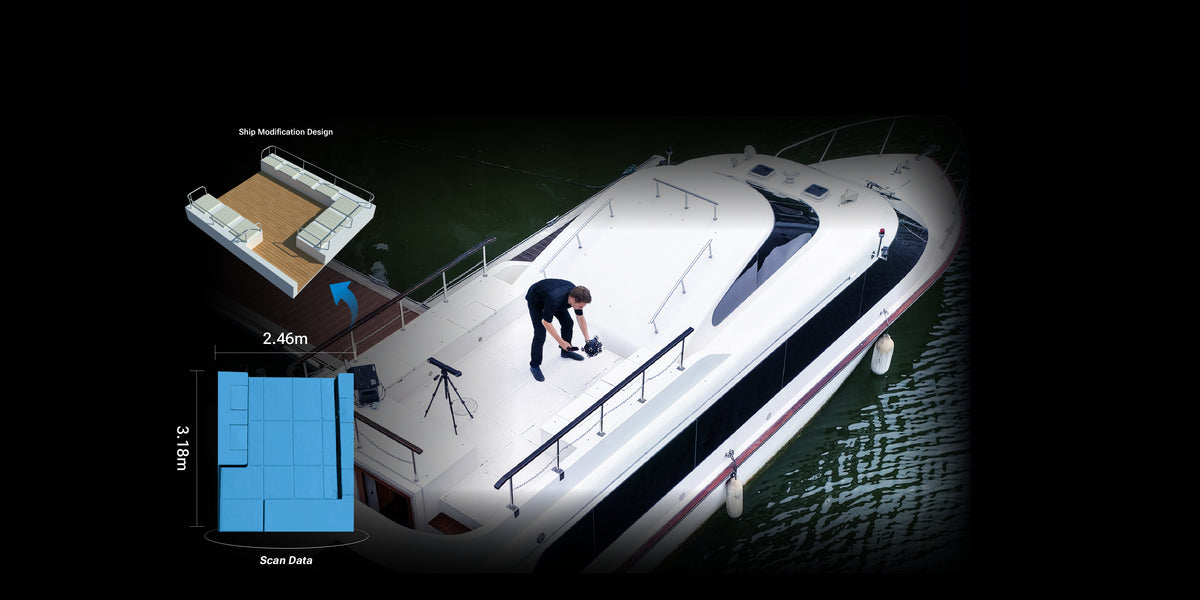

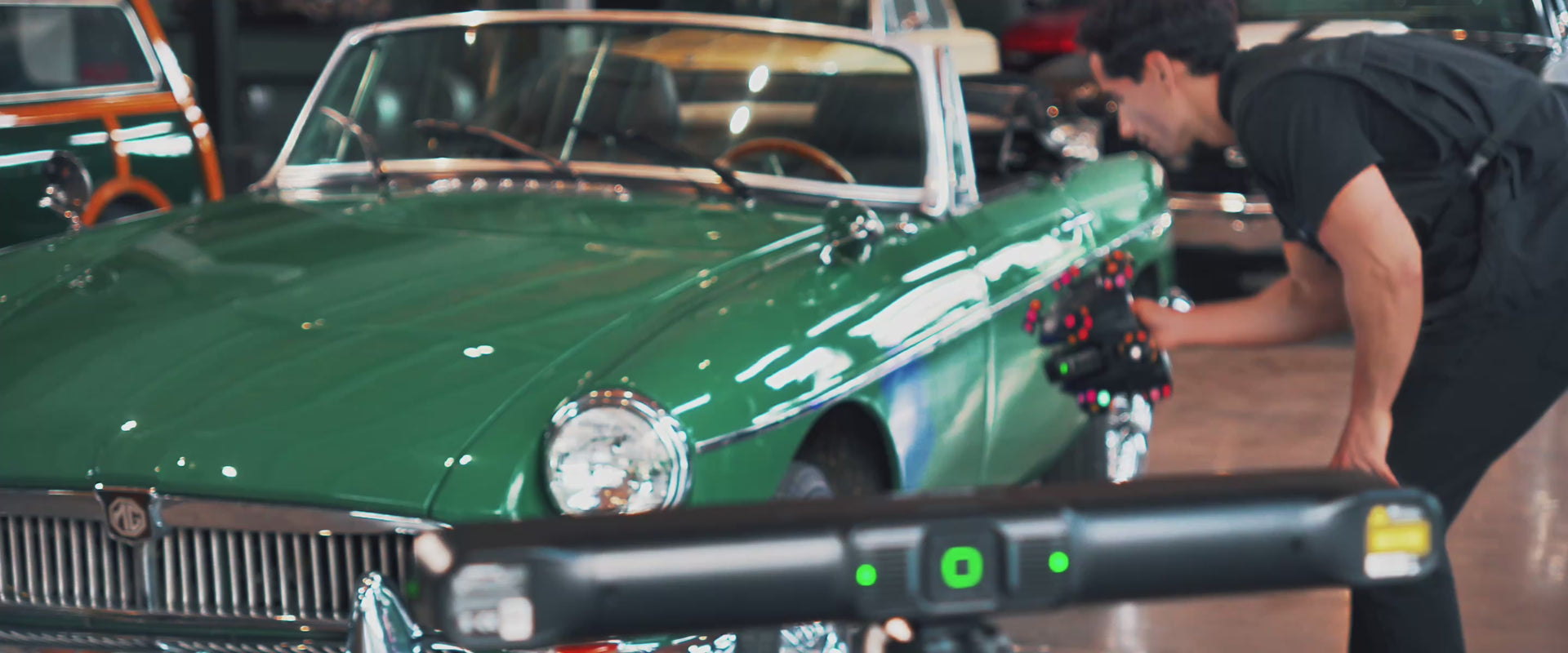

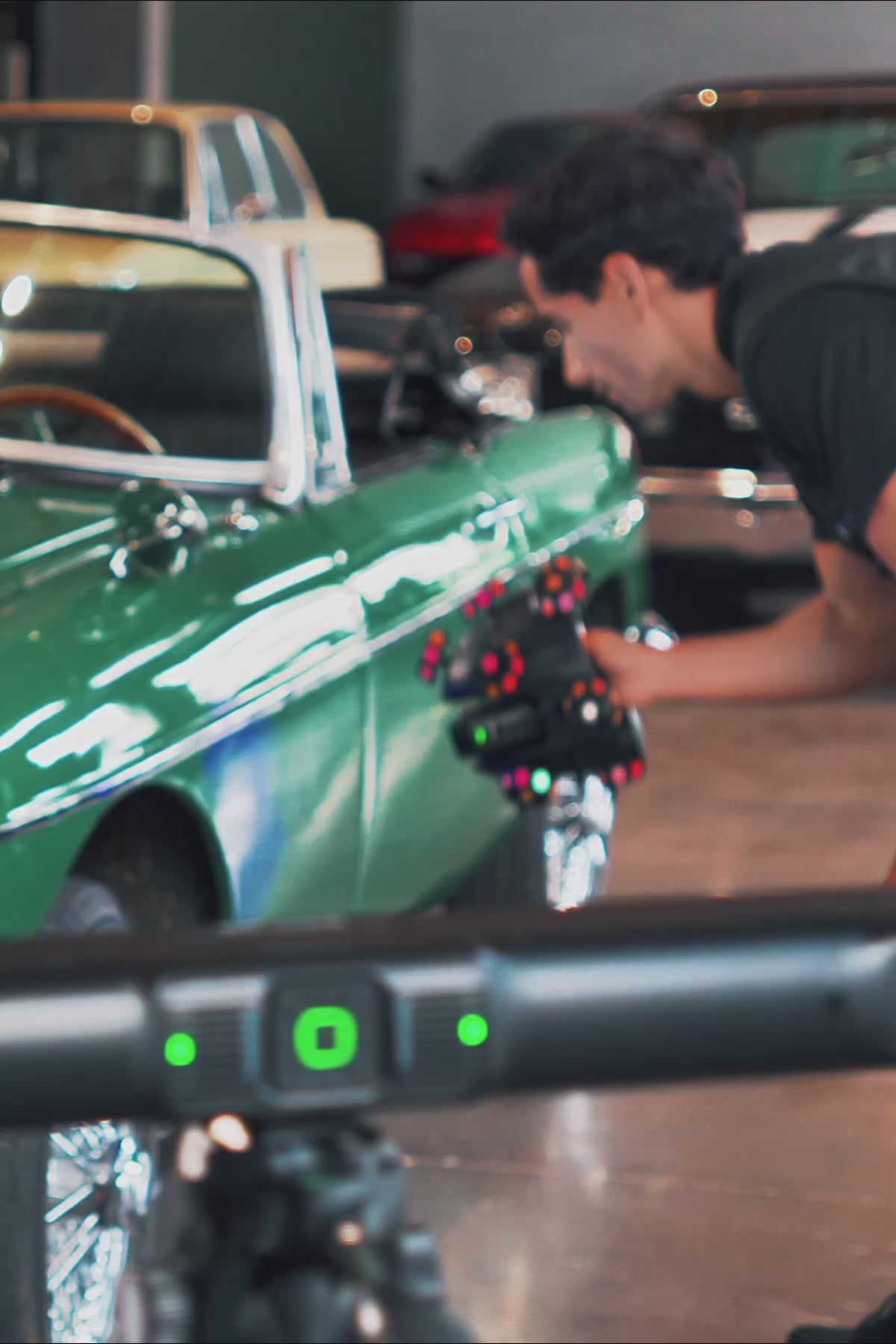

Tracking Mode
Fast, expansive scanning for medium to large objects. Move the tracker freely to extend your coverage and reduce costs.

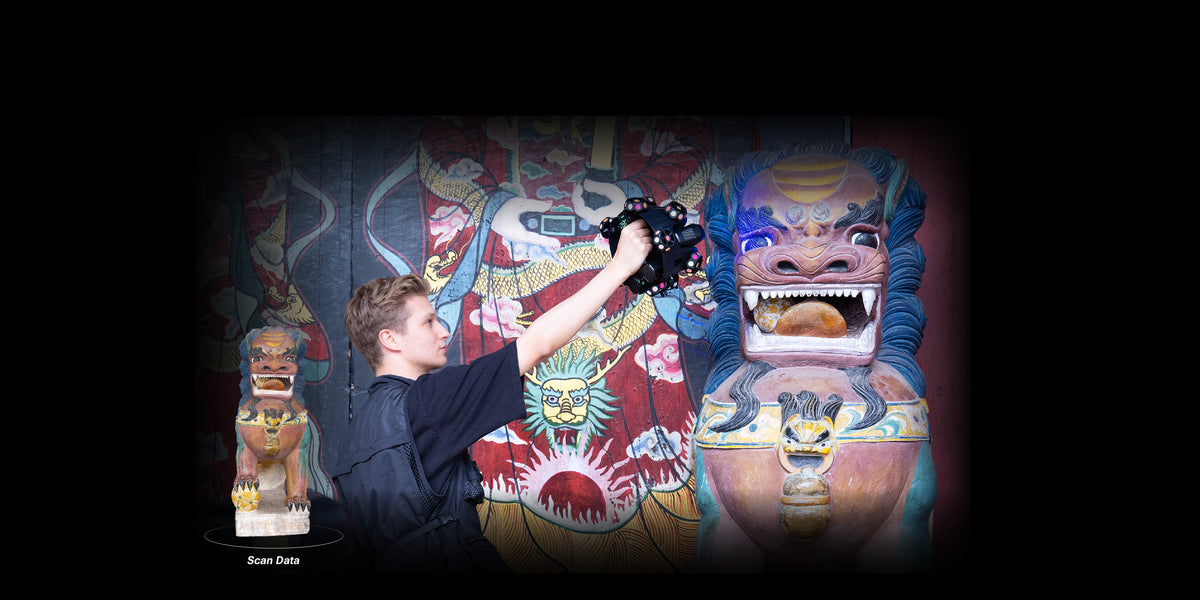

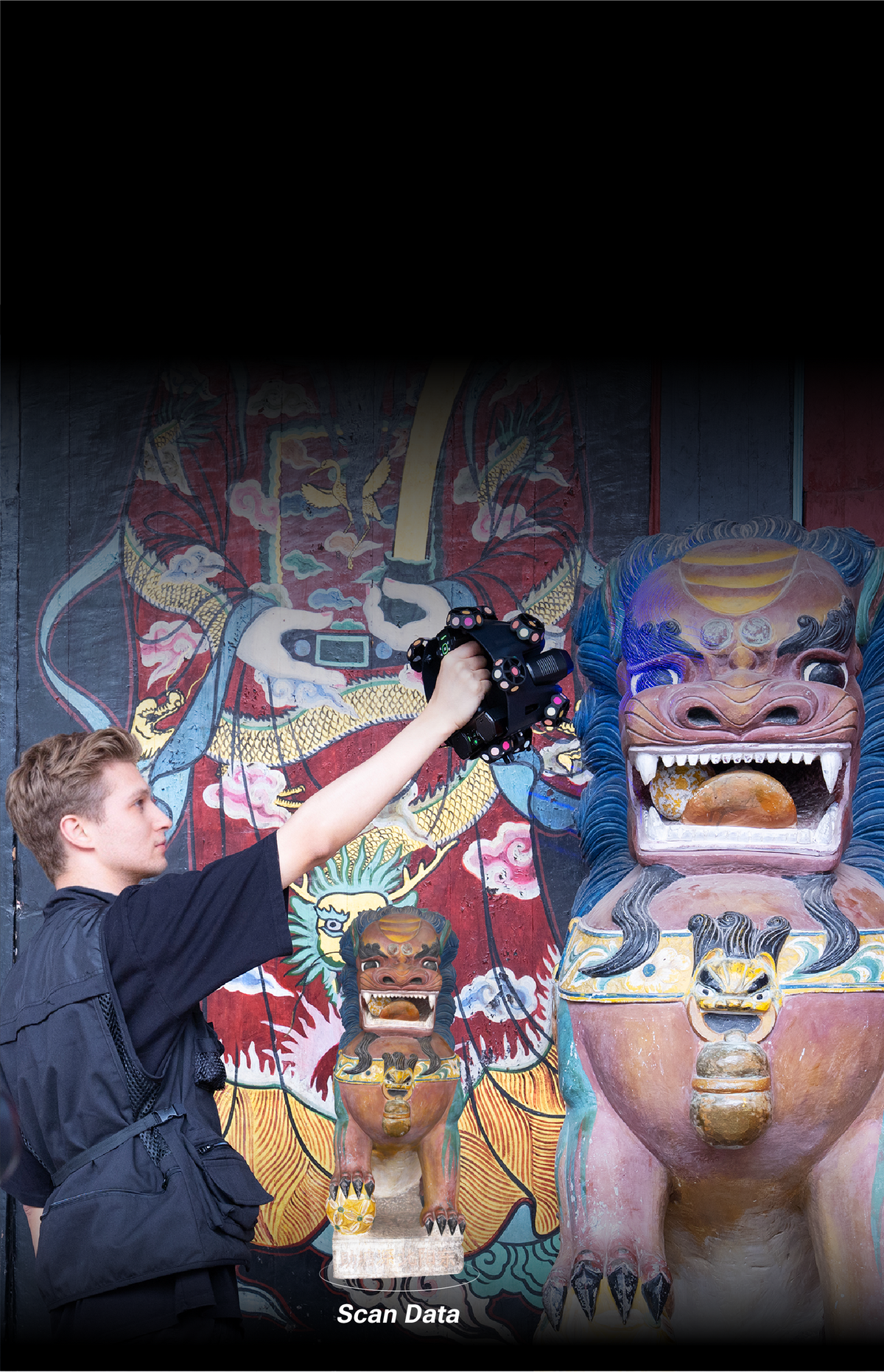

Handheld Scanner Mode
Reaches narrow spaces beyond the coverage of tracking mode and provides a lighter, more flexible experience for scanning small size objects.

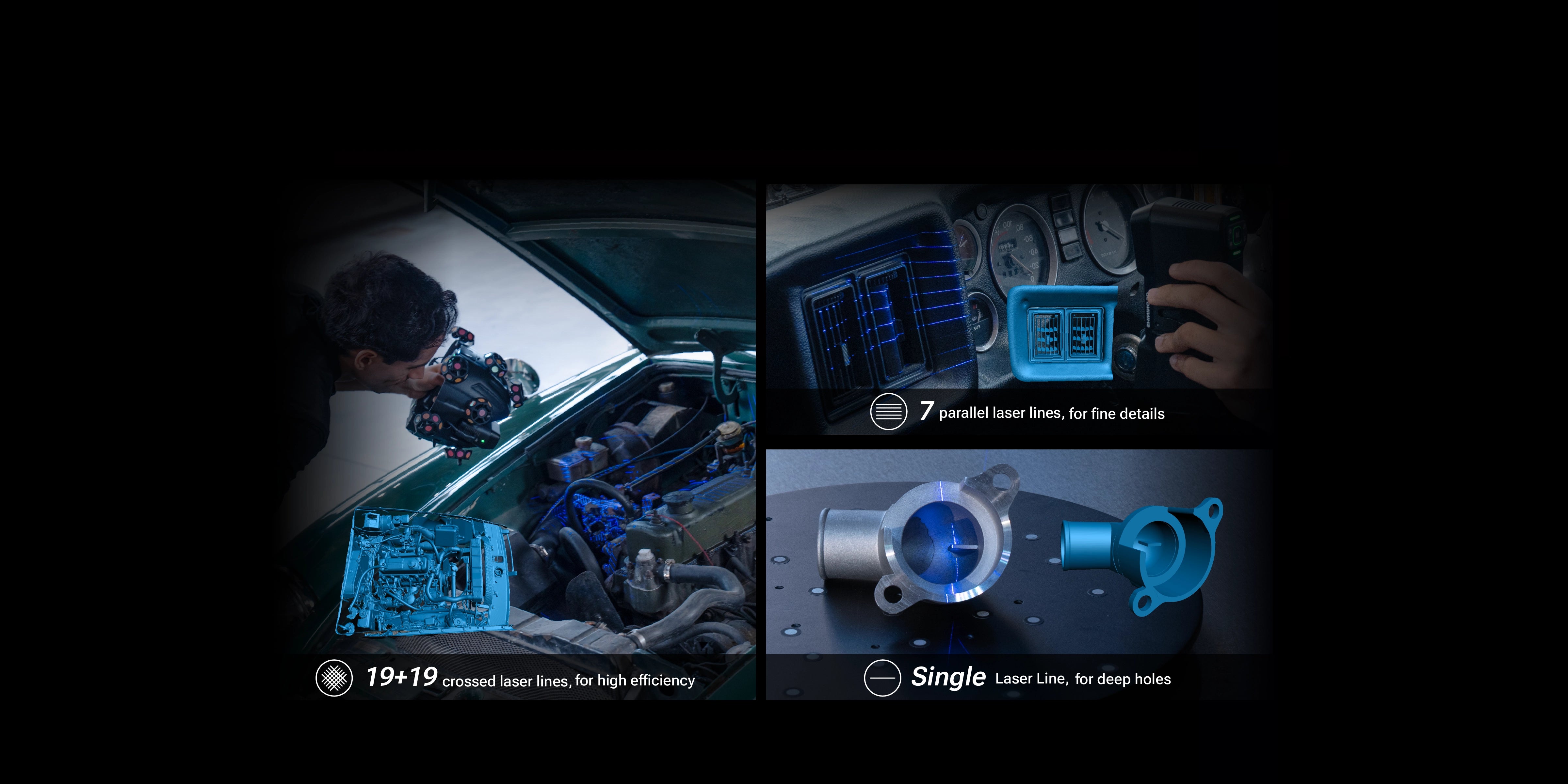

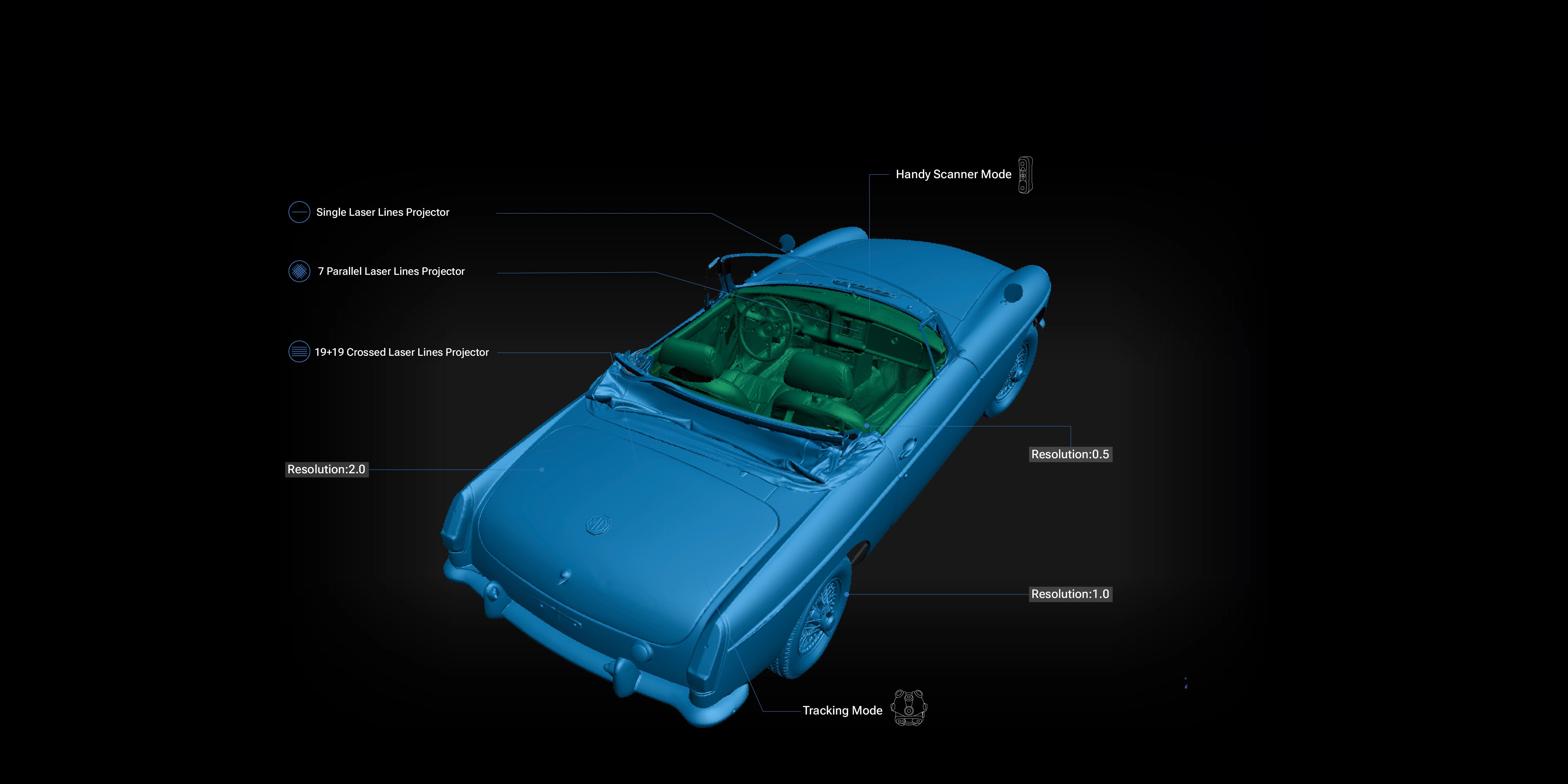

Three Scanning Modes
19+19 Crossed Laser Lines
For High Efficiency Scanning, acquires high quality data from large objects quickly
7 Parallel Laser Lines
For Fine Details Scanning, captures lines and sharp edges on components
Single Line
For Deep Holes Scanning, reaches deeper to capture fine details with 1:4 diameter- depth ratio

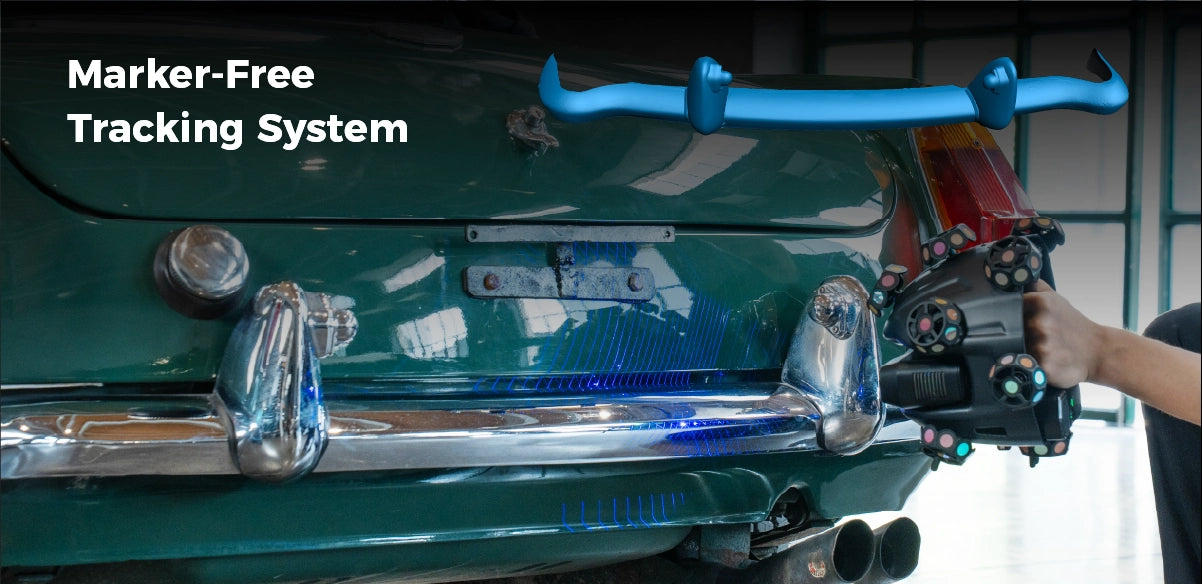

Marker-Free Tracking System
Even on Low-Feature Surfaces

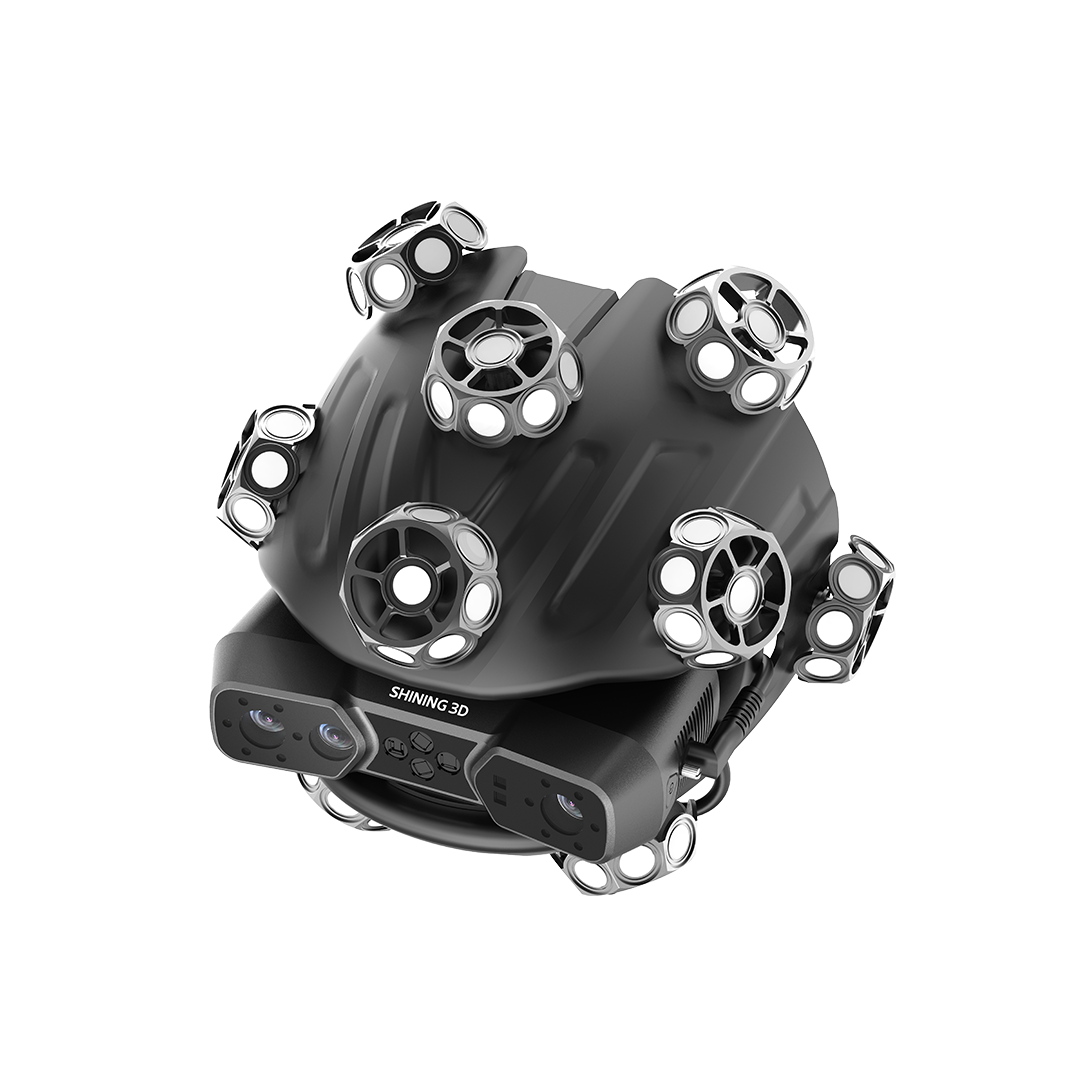

EinScan Trak with built-in retroreflective markers on the spherical scanner module, the tracker tracks the scanner's position in real time. Support for leapfrog scanning, it delivers a more flexible scanning experience and enables stable laser scanning without placing markers on the object, even across large, smooth surfaces

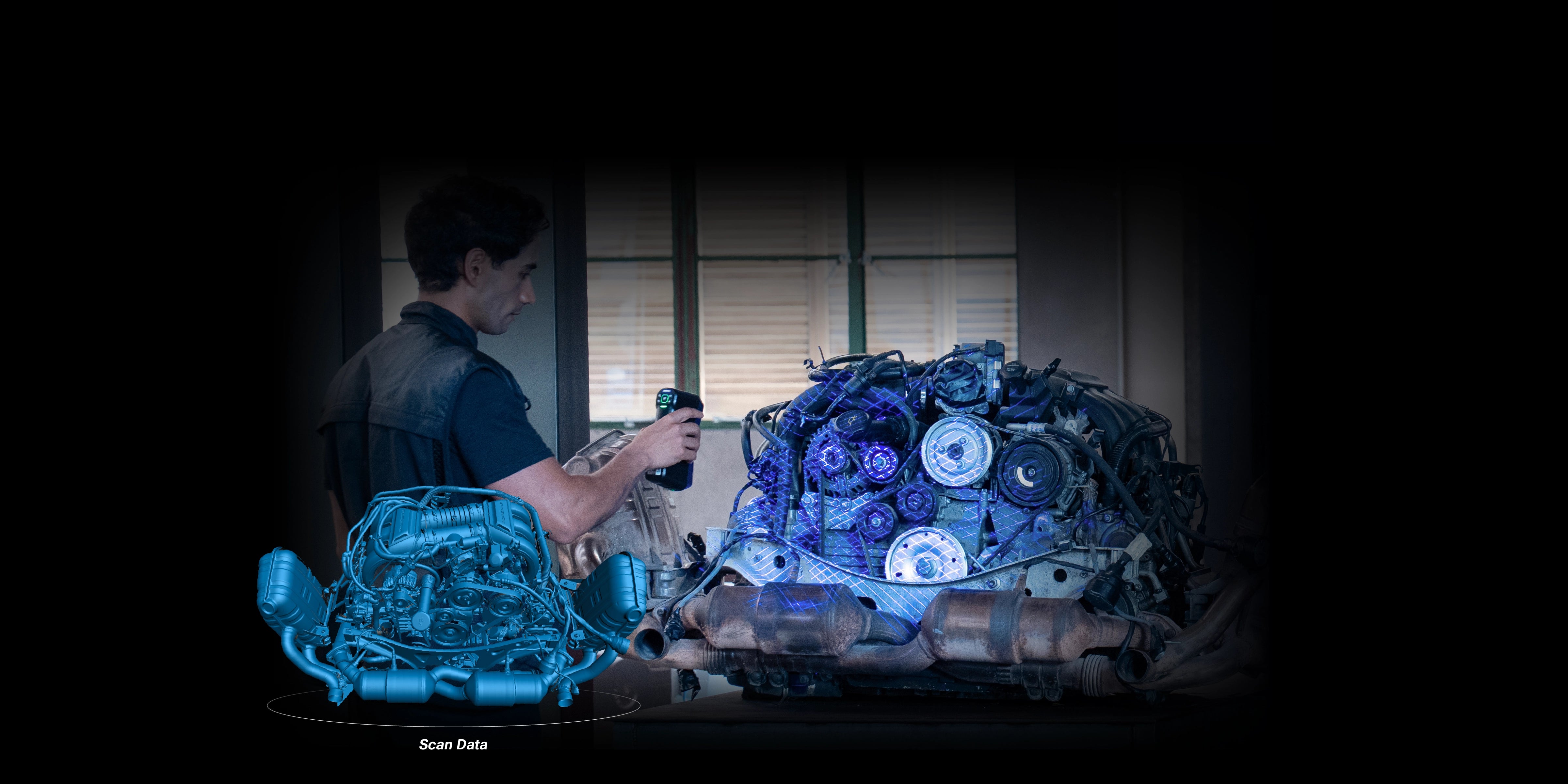

Marker-Free Handheld Scanner Mode
Save Scanning Preparation Time and Cost
For feature-rich surfaces, EinScan Trak scanner mode delivers a smooth, marker-free laser 3D scanning experience. (Note: For high-accuracy requirements, global markers are still recommended.)

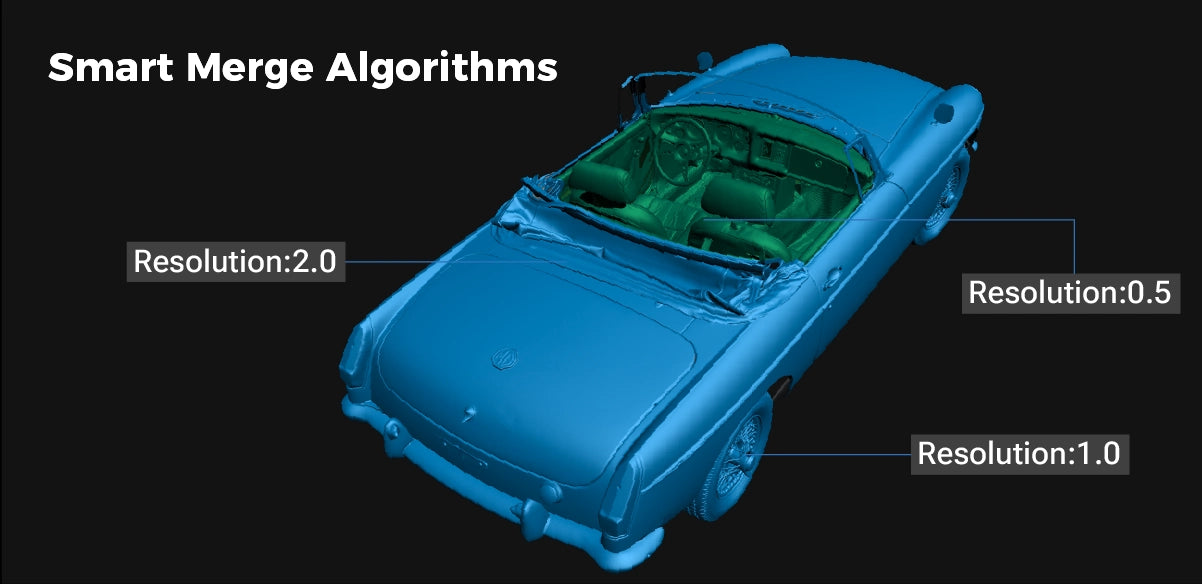

Flexible Scan, Smart Merge
Real-Time Adjustment During Scanning

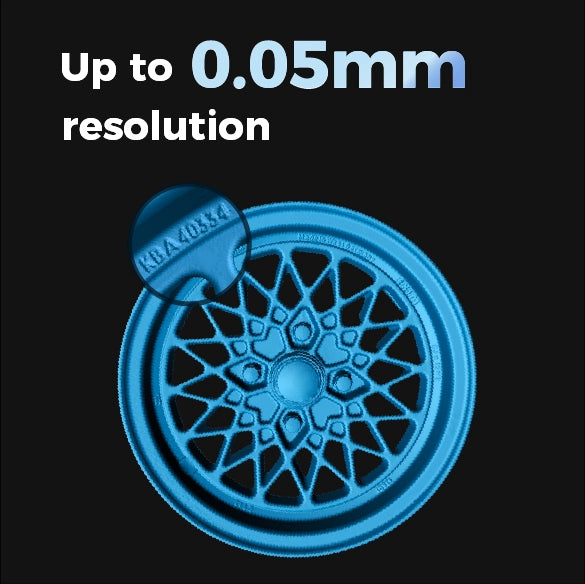

Up to 4 meters scanning distance and 0.05 mm resolution. Support for Ultra-Fine Scanning, During scanning you can switch between different resolutions in one scan and customize areas that require more details in the local resolution function.
Less Redundant Data, Higher Efficiency
Supports data alignment between tracking mode and scanner mode, with compatibility across multiple resolution (point distance) and laser lines.

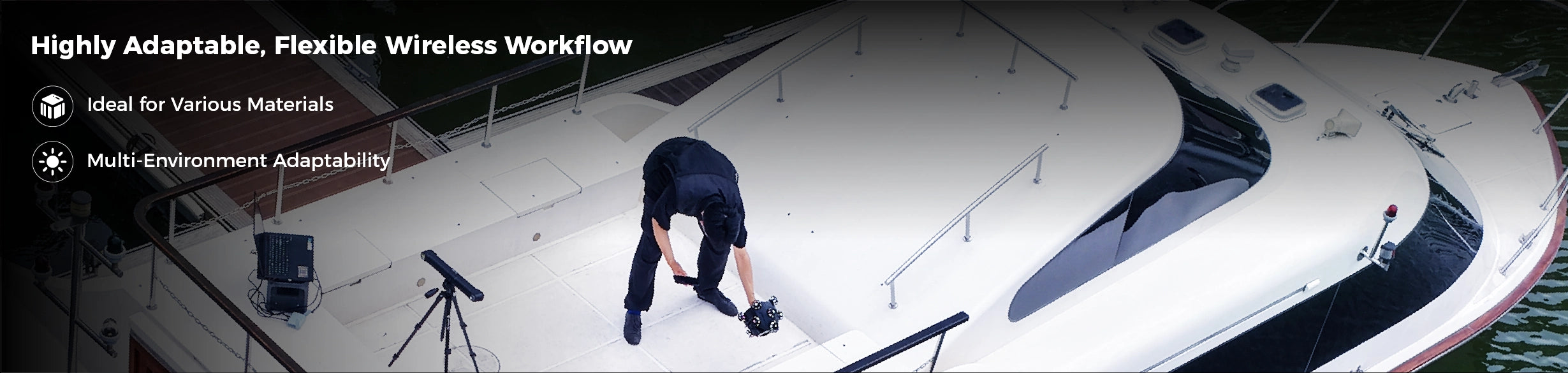

Highly Adaptable, Flexible Wireless Workflow

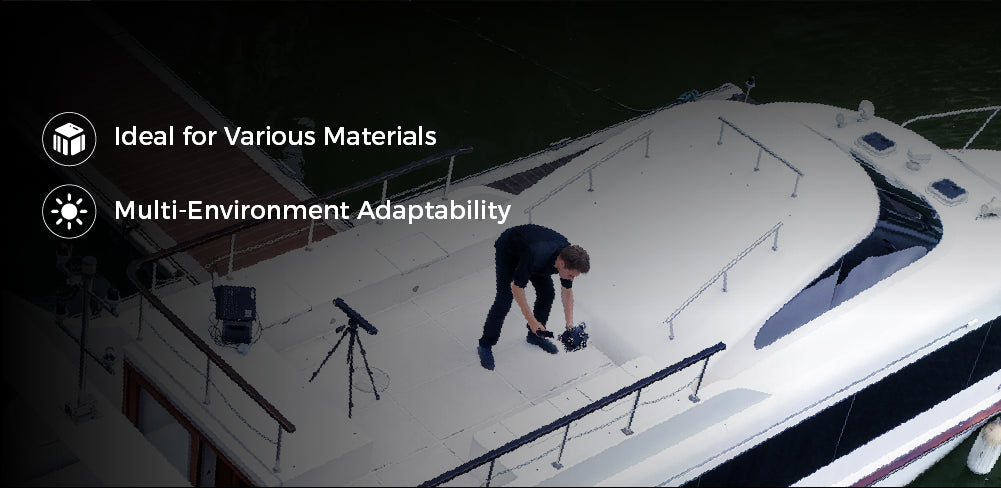

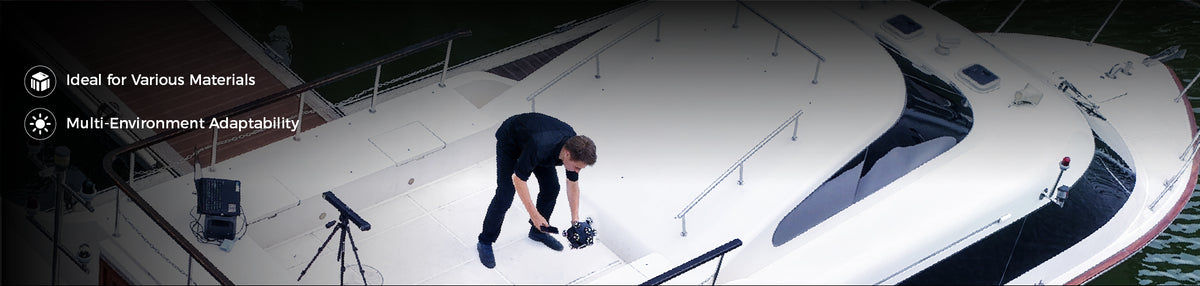

Ideal for Various Materials
Scan black and reflective surfaces effortlessly without any data loss.
Multi-Environment Adaptability
Reliable scanning outdoor & indoor, supports scanning under strong outdoor light up to 110,000 lux.
Long Battery Life, Easy to Use and Carry
No Battery Anxiety

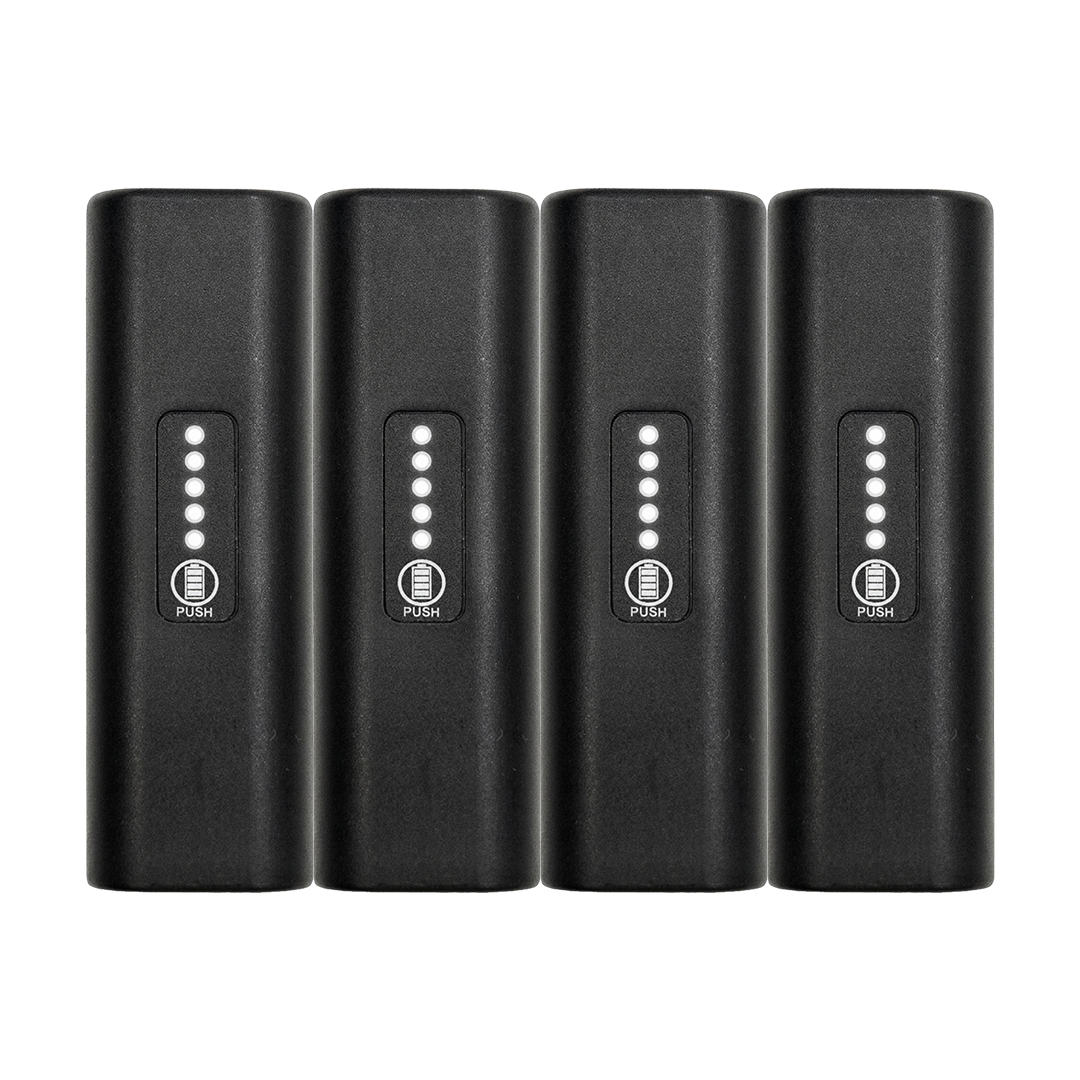

Up to 5.5 hours of battery life in tracker mode, with hot-swappable batteries for uninterrupted operation. Handheld scanner mode supports up to 3.5 hours of use.
5-10 Minutes Calibration, Built for Changing Environments
Quickly calibrate the full system and maintain reliable performance from -10°C to 40°C, with fewer recalibrations and greater workflow efficiency.

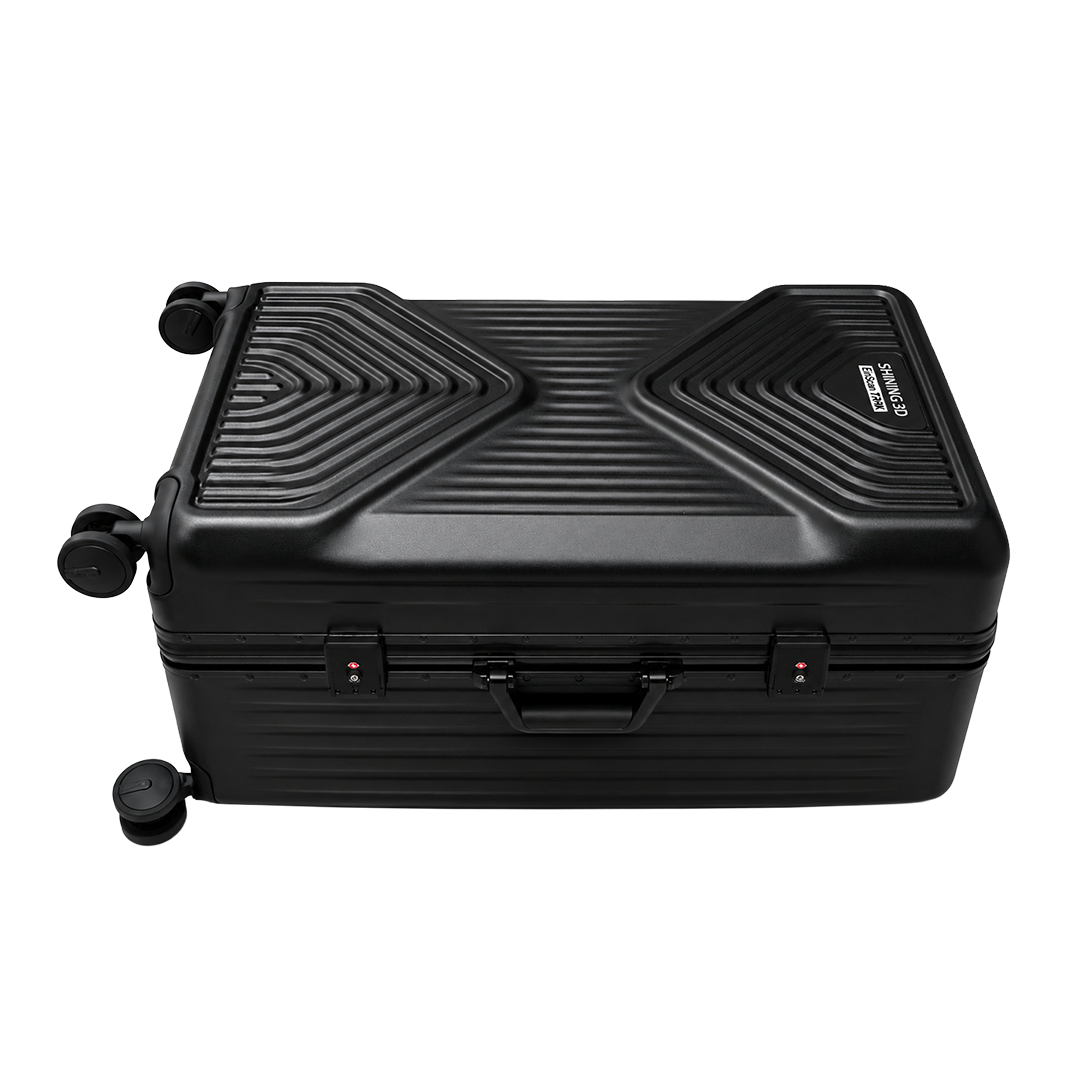

Safe to Transport, Easy to Carry
High-strength CFFIM carbon fiber, built for shock resistance and worry-free transport.
Texture Scanning
5MP HD texture scanning accurately captures object colors and material details.

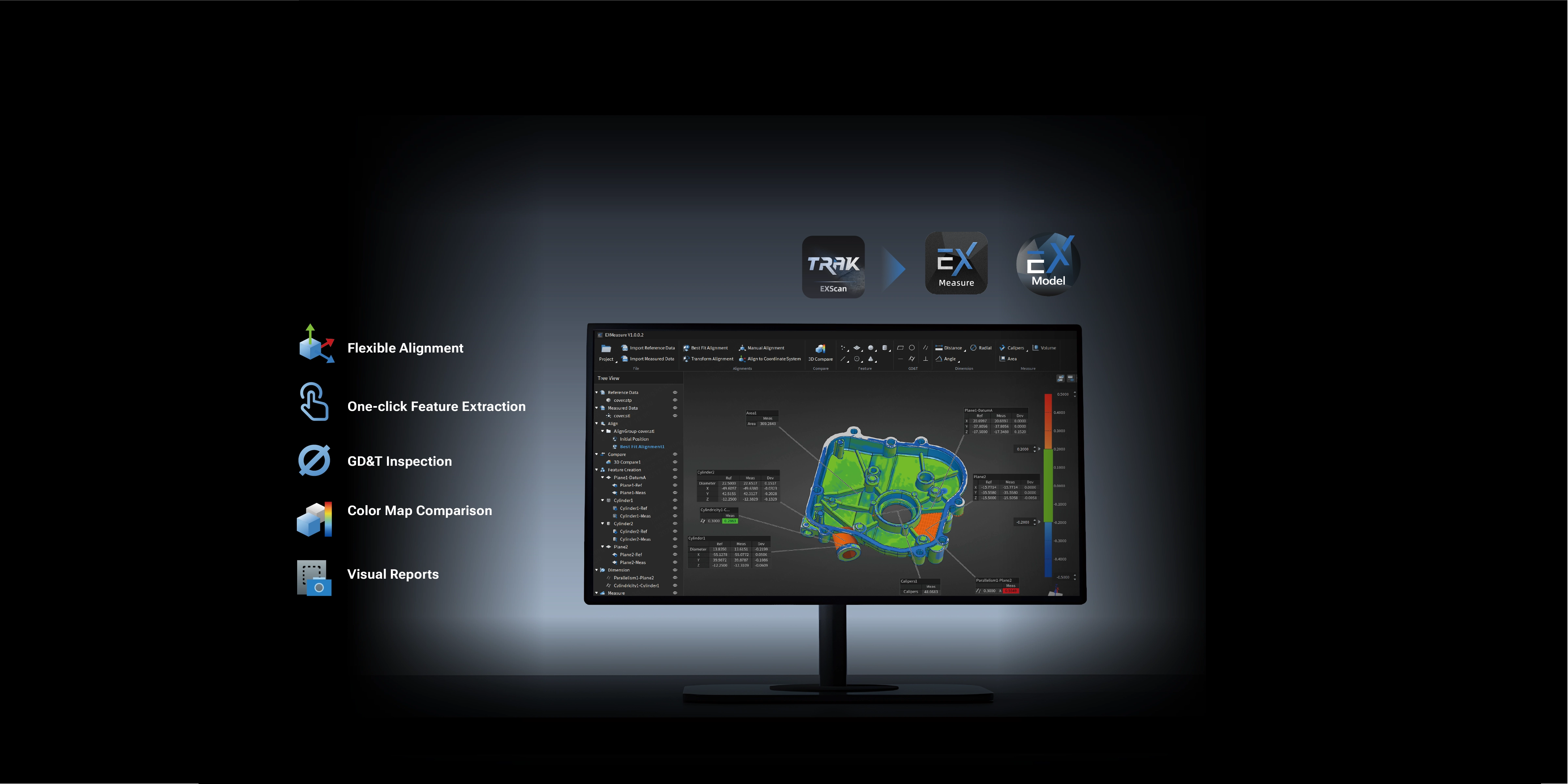

From Scanning to Measurement

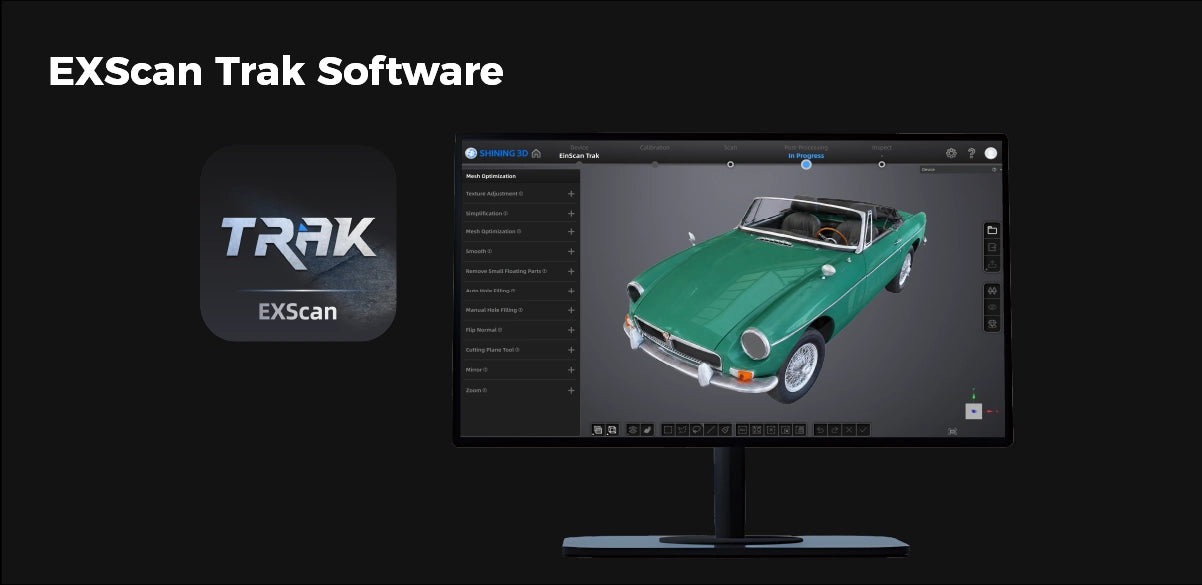

EXScan Trak Software
EXScan Trak is Scanning software for EinScan Trak Series, Designed to support complex 3D data acquisition with a flexible and efficient workflow.

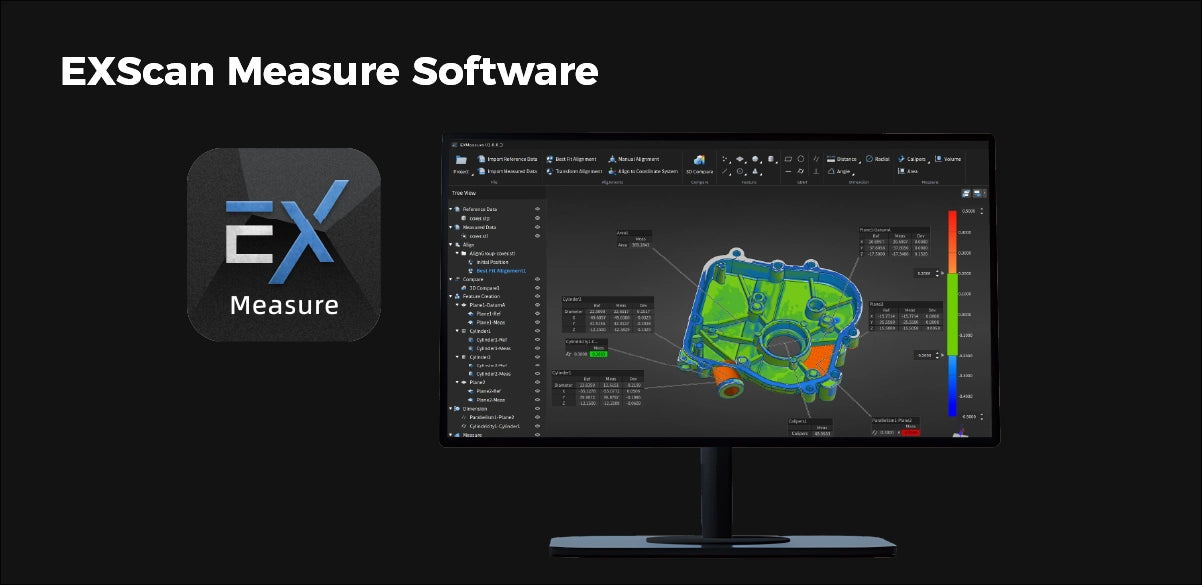

EXMeasure Software
EXMeasure is a measurement software designed to work seamlessly with EinScan Trak Series, supporting digital dimensional analysis from scan data to verification.
From Scanning to Reverse Engineering
EXModel Software
EXModel Series is a powerful gateway that simplifies CAD modeling, from 3D scanning to manufacturing. It provides a comprehensive set of tools that enable you to transform a mesh into a professional-quality CAD solid model in just a few simple steps.

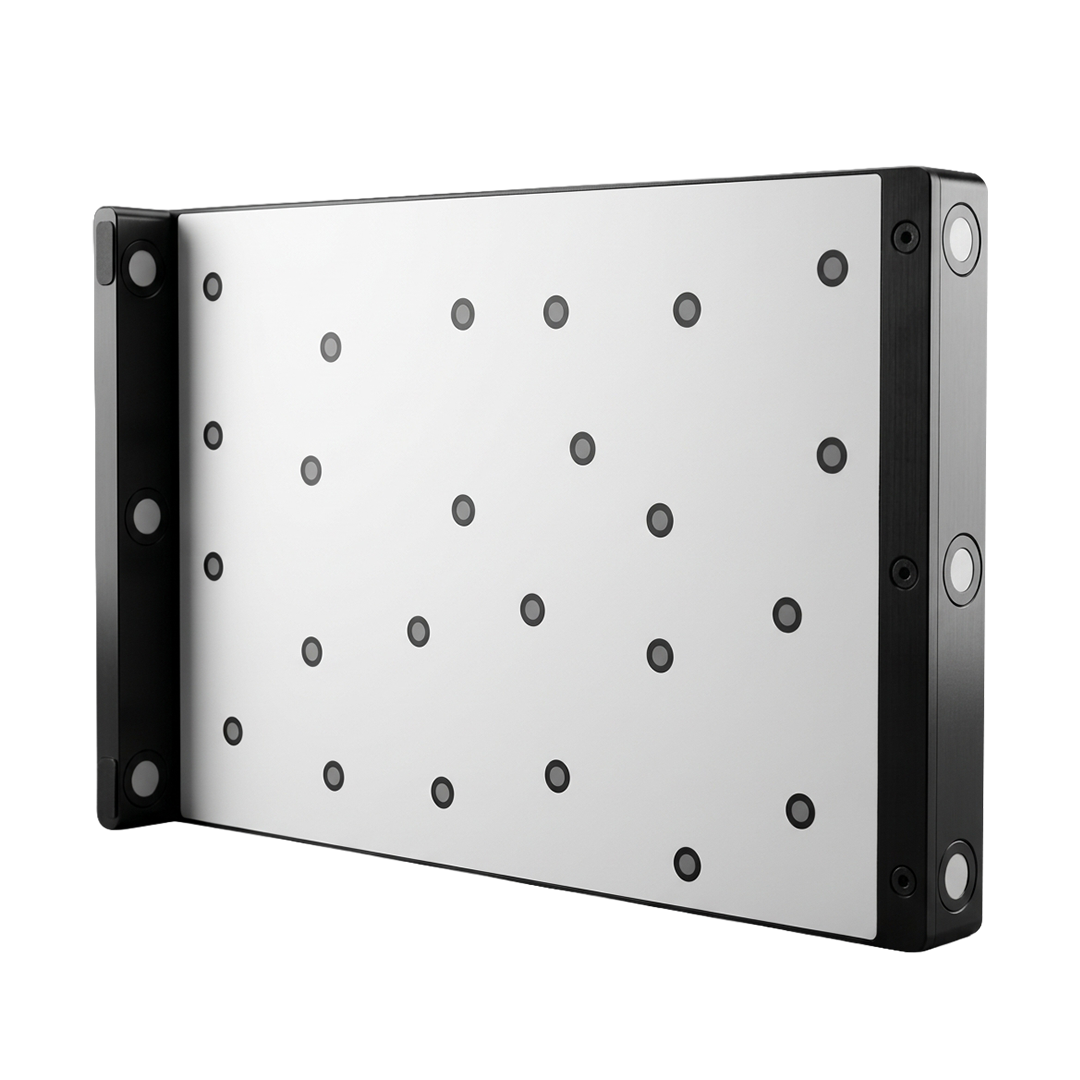

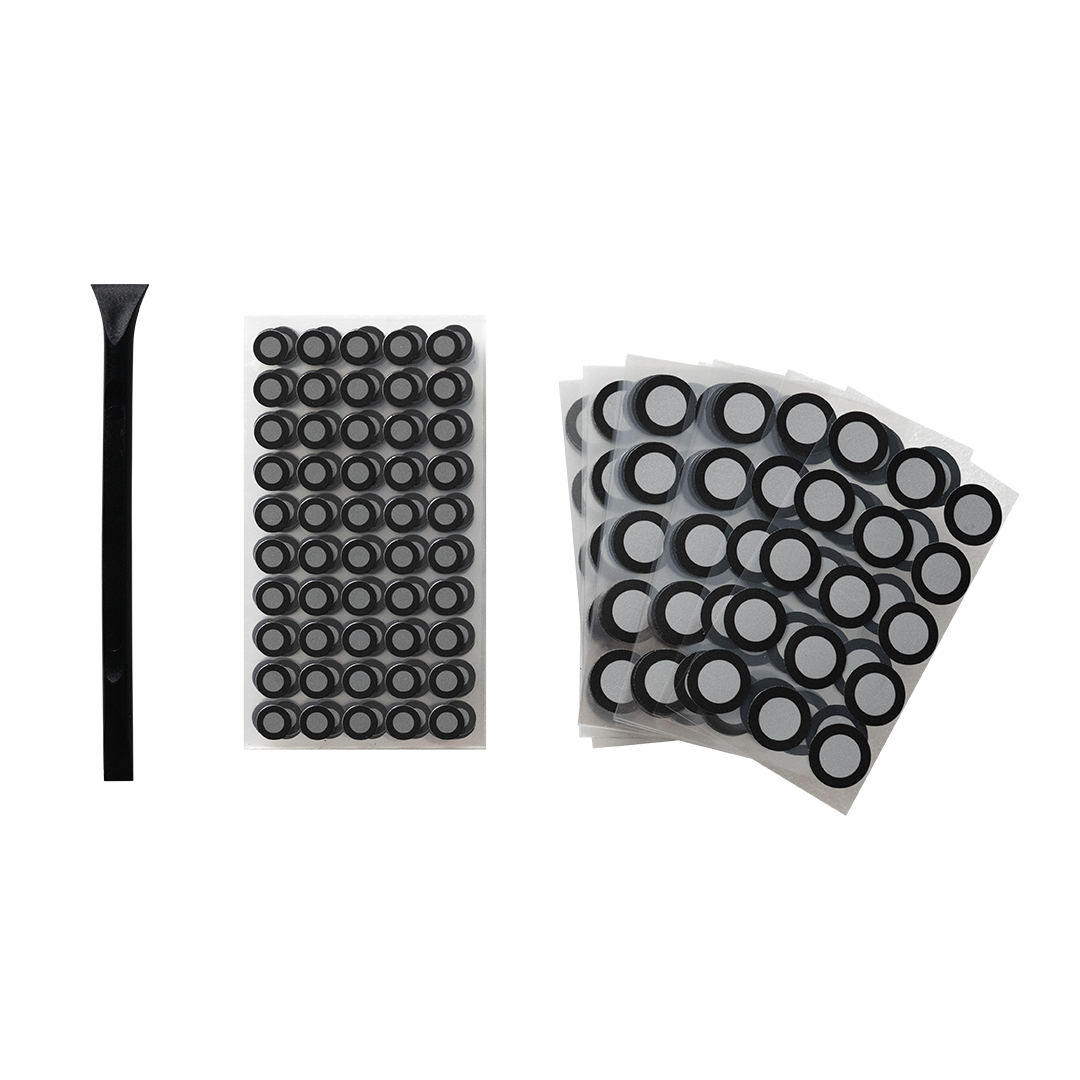

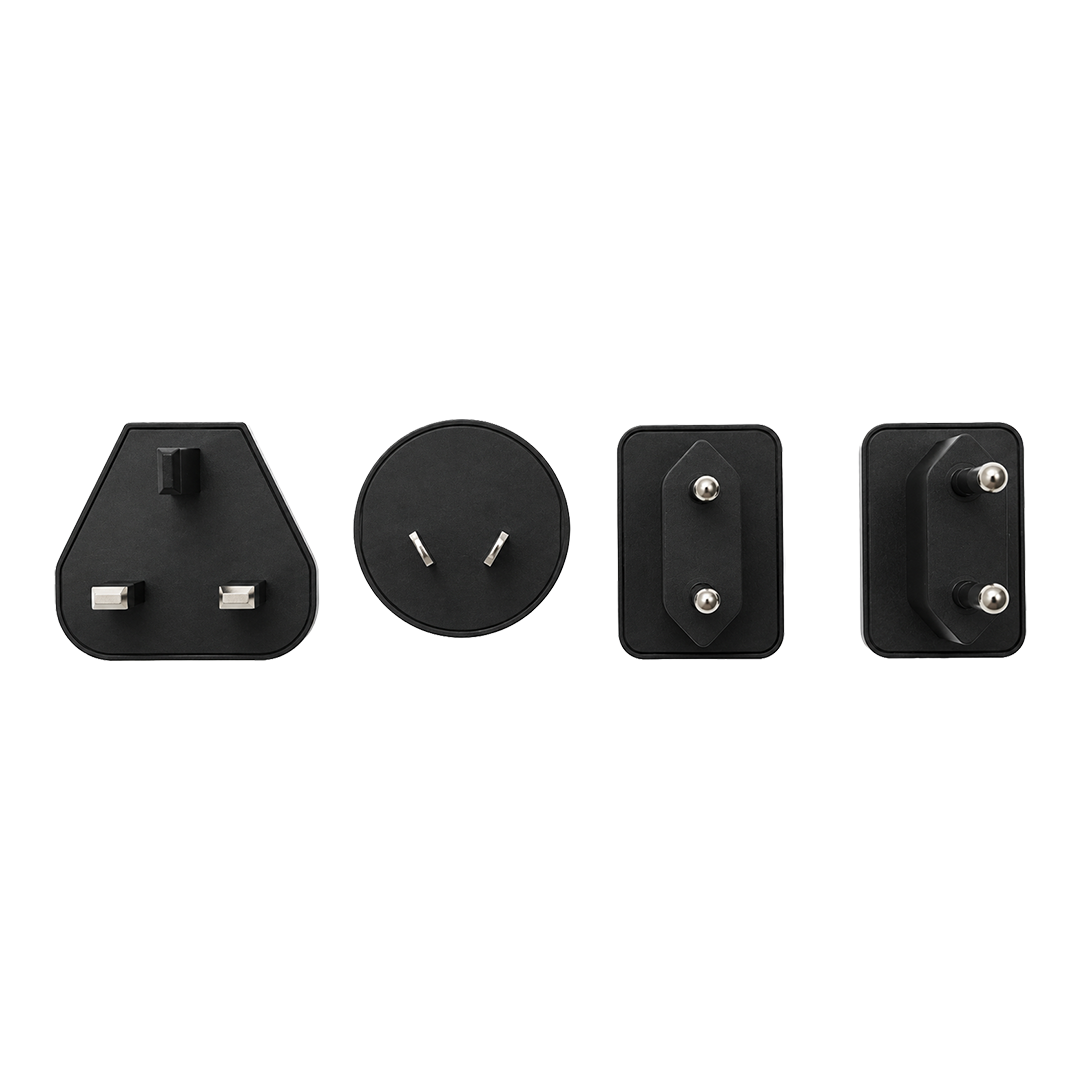

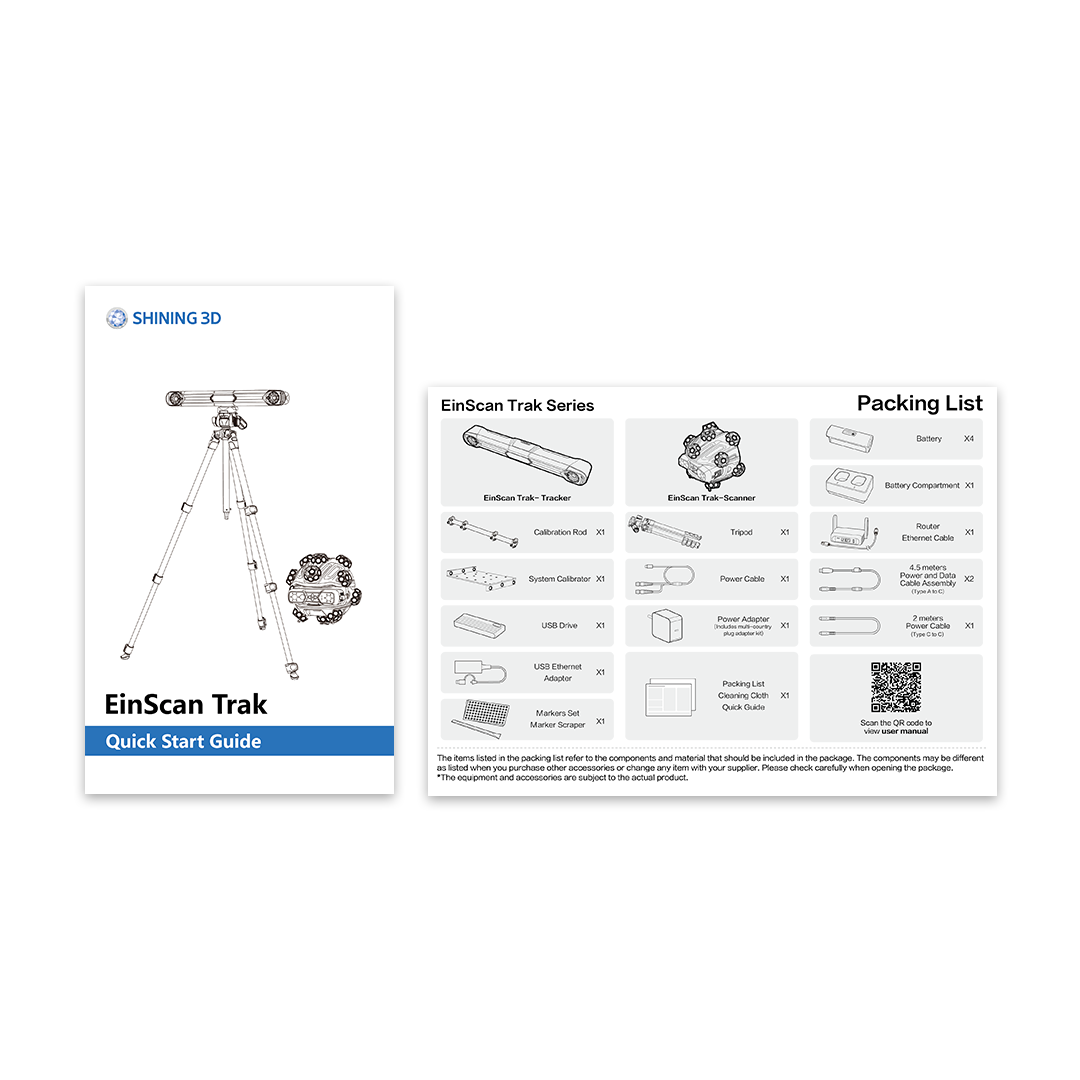

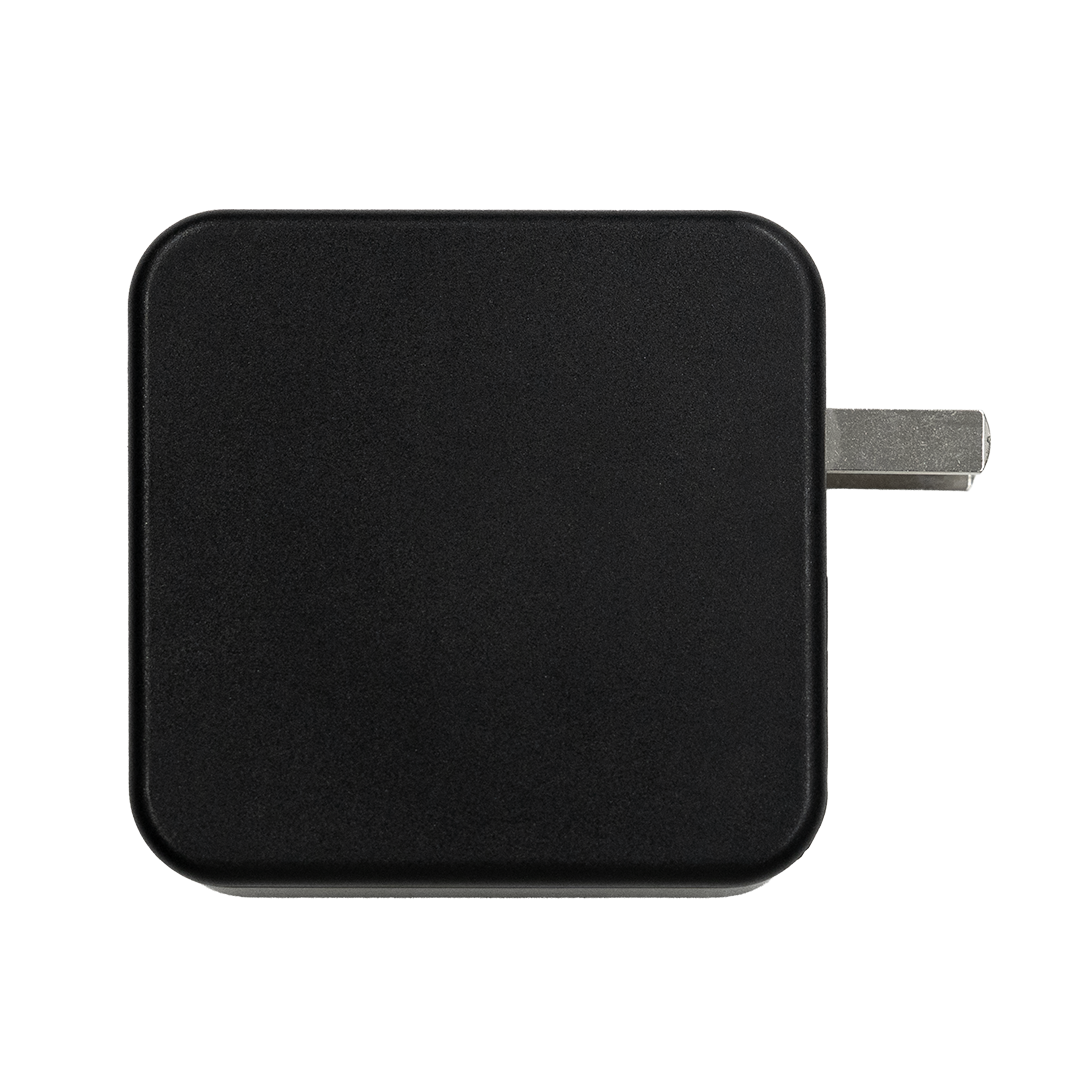

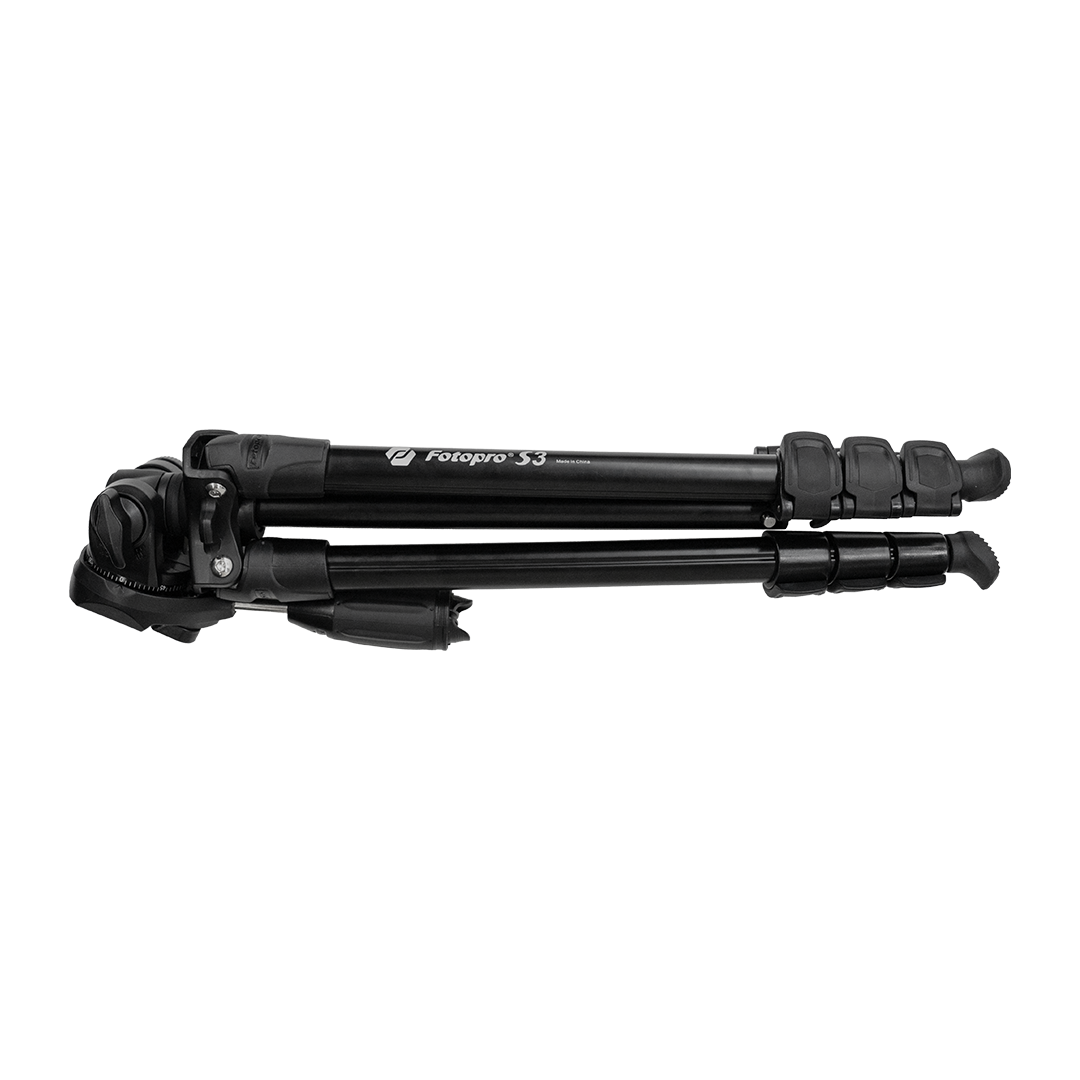

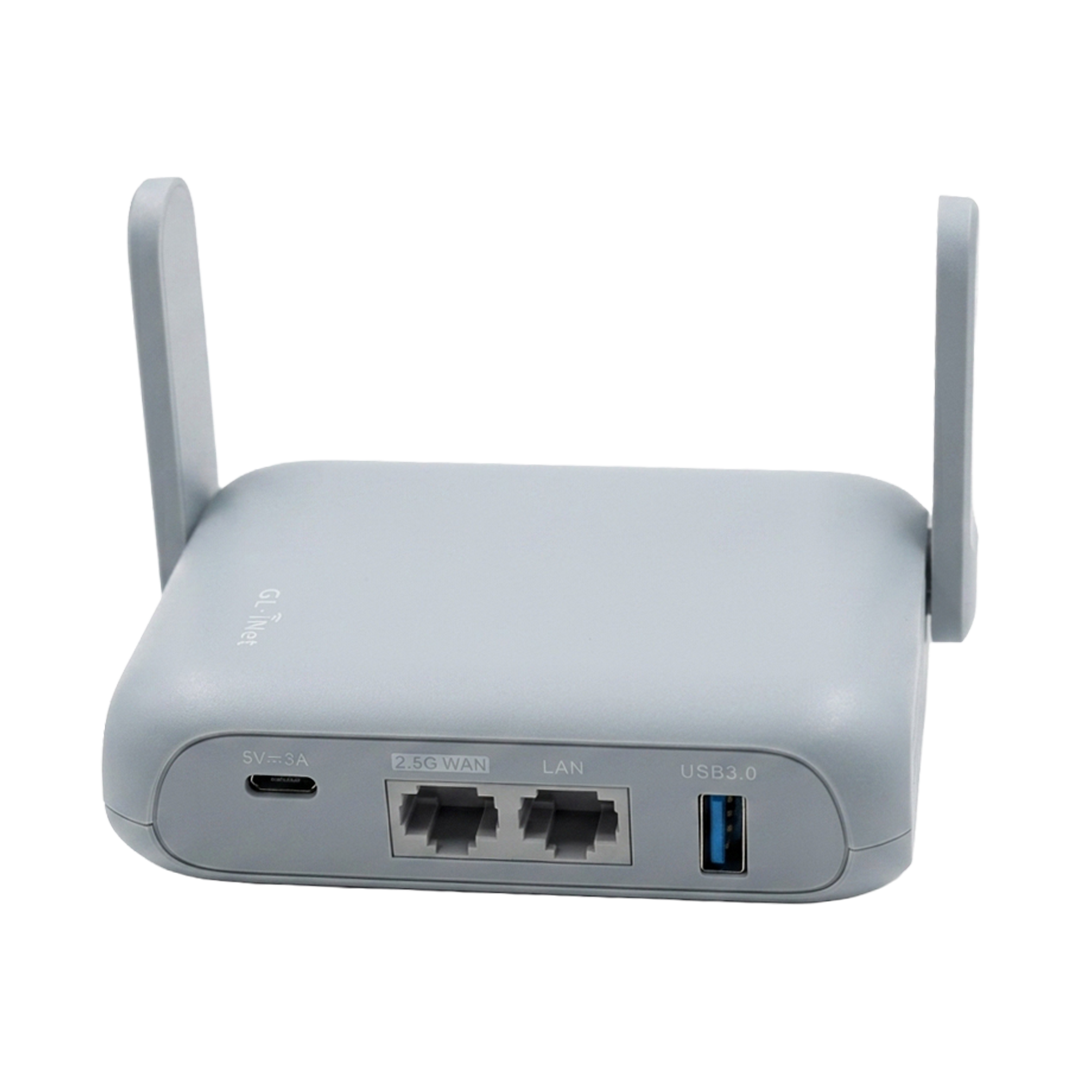

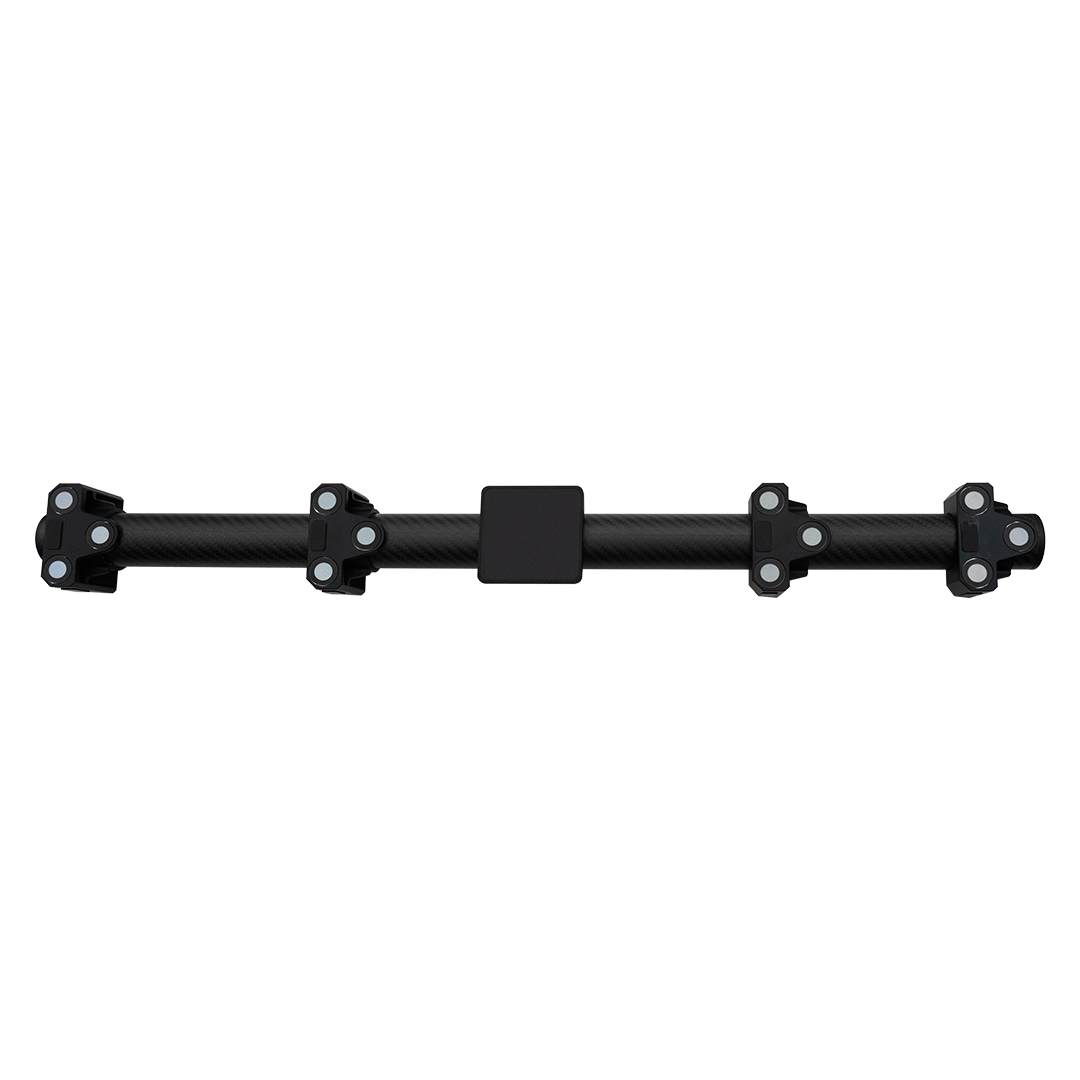

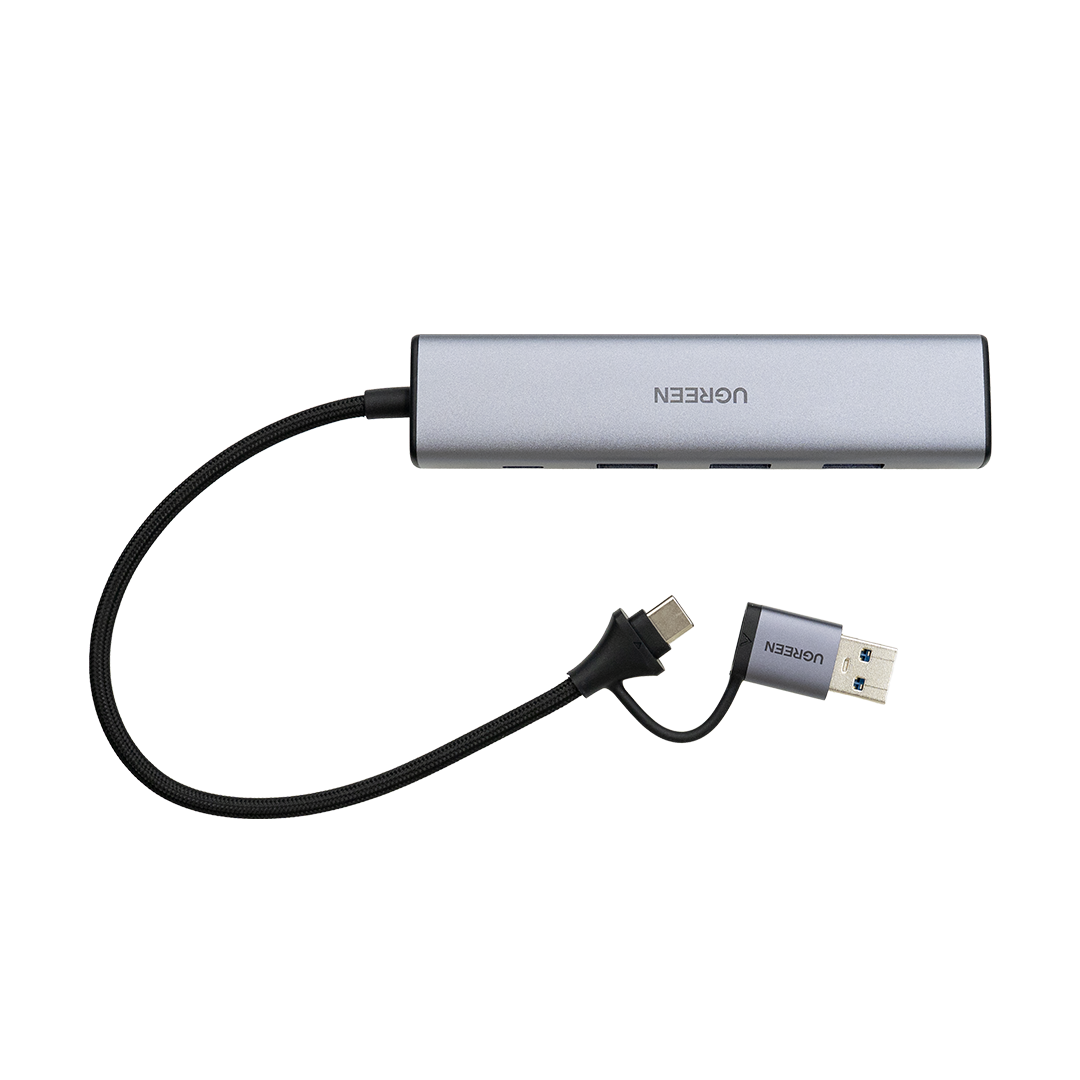

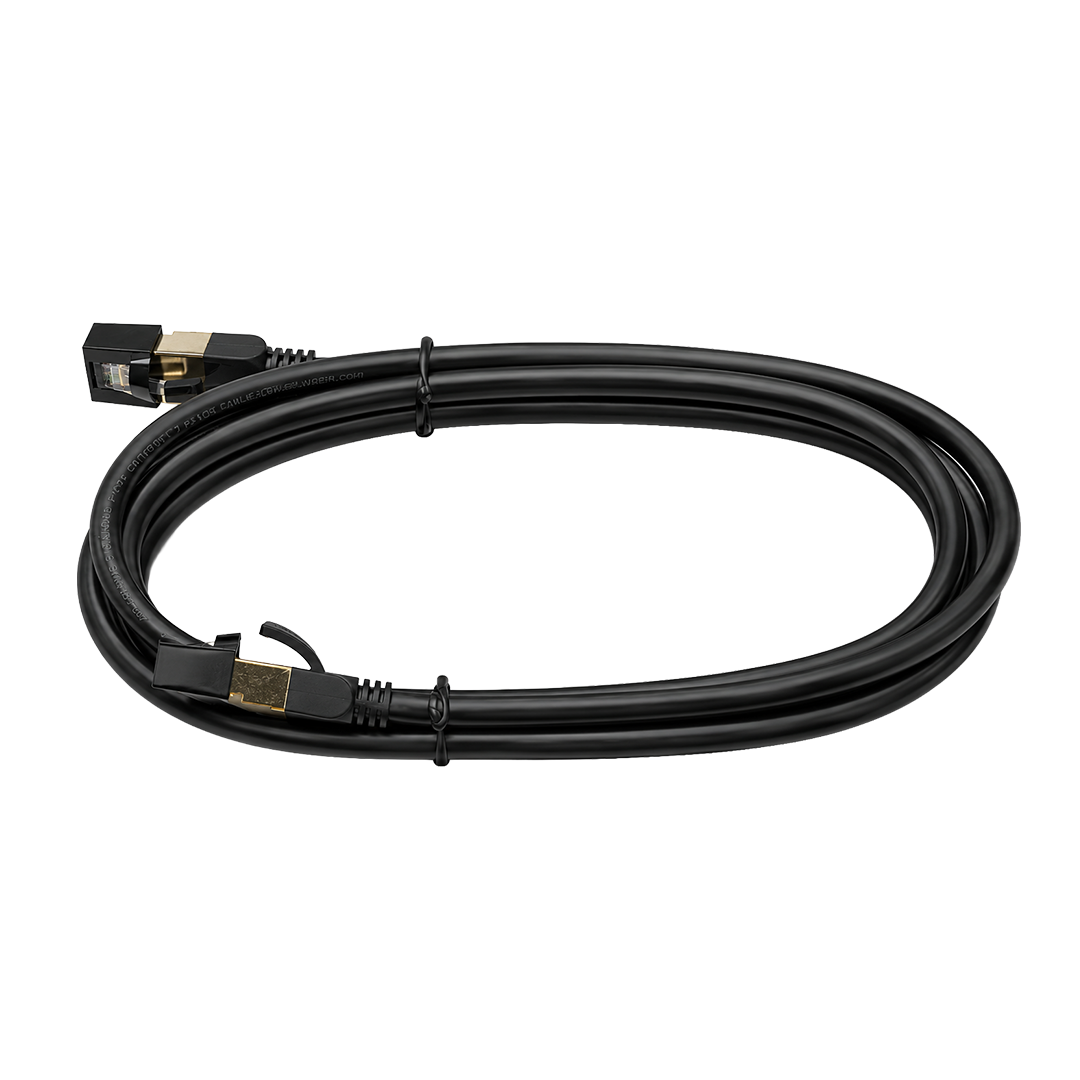

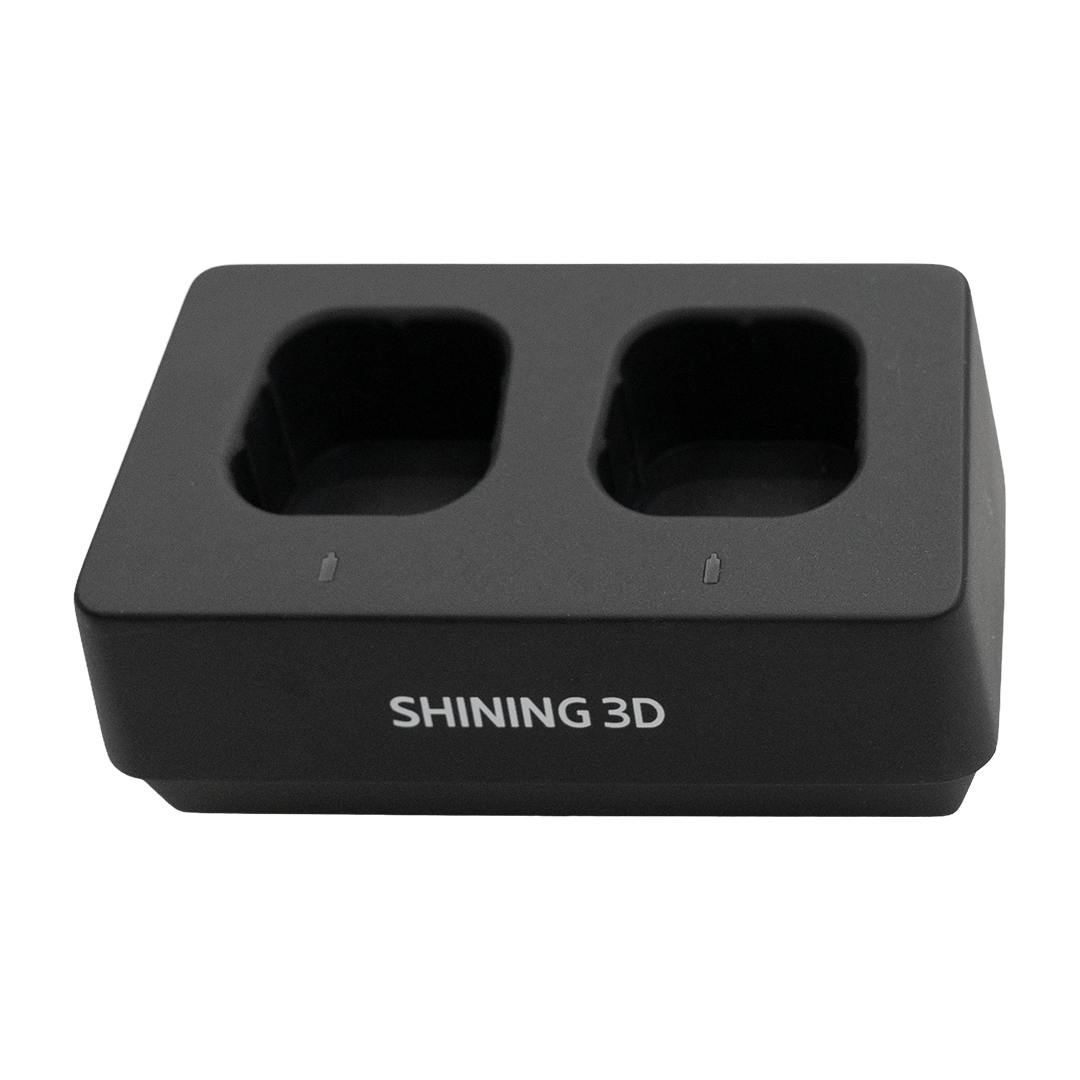

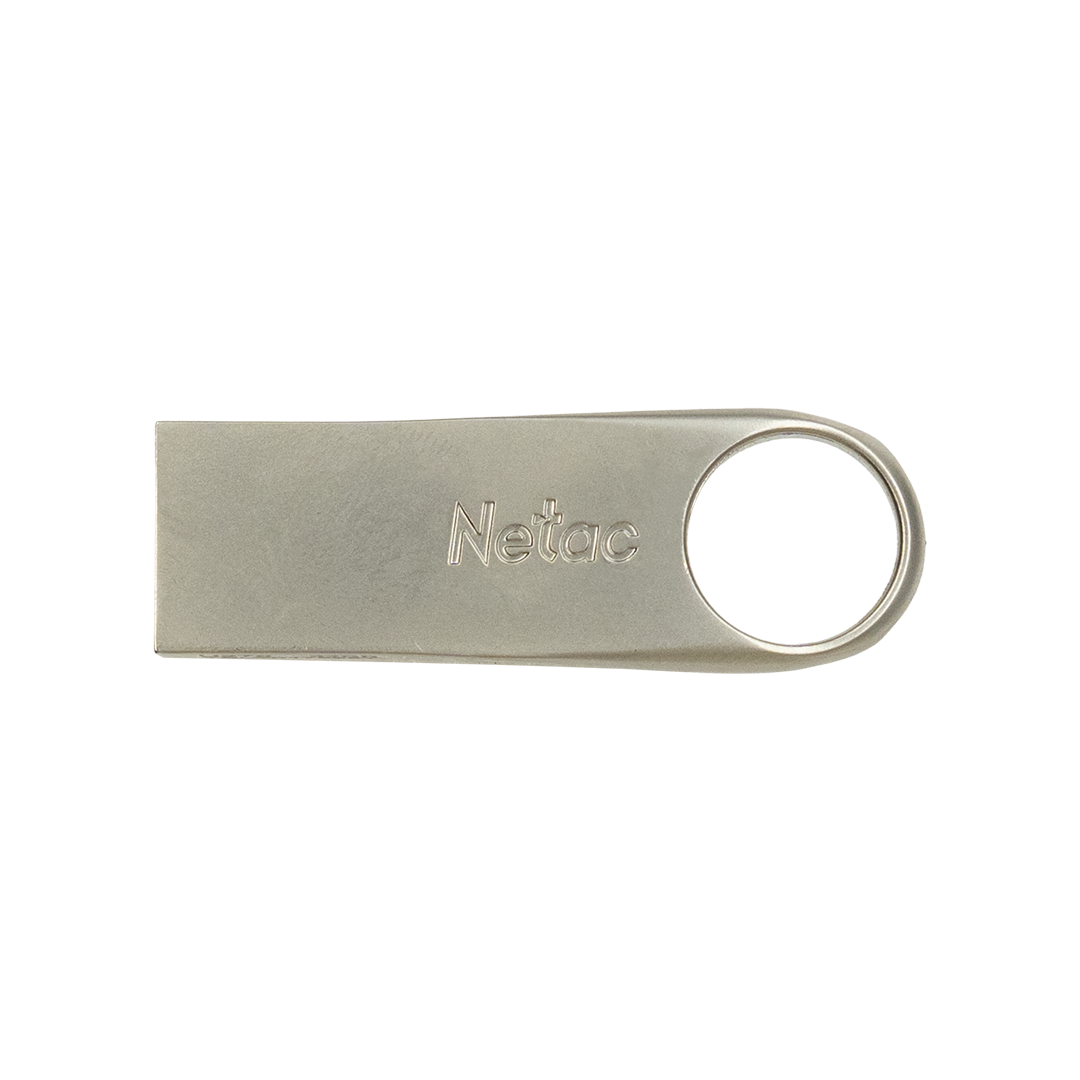

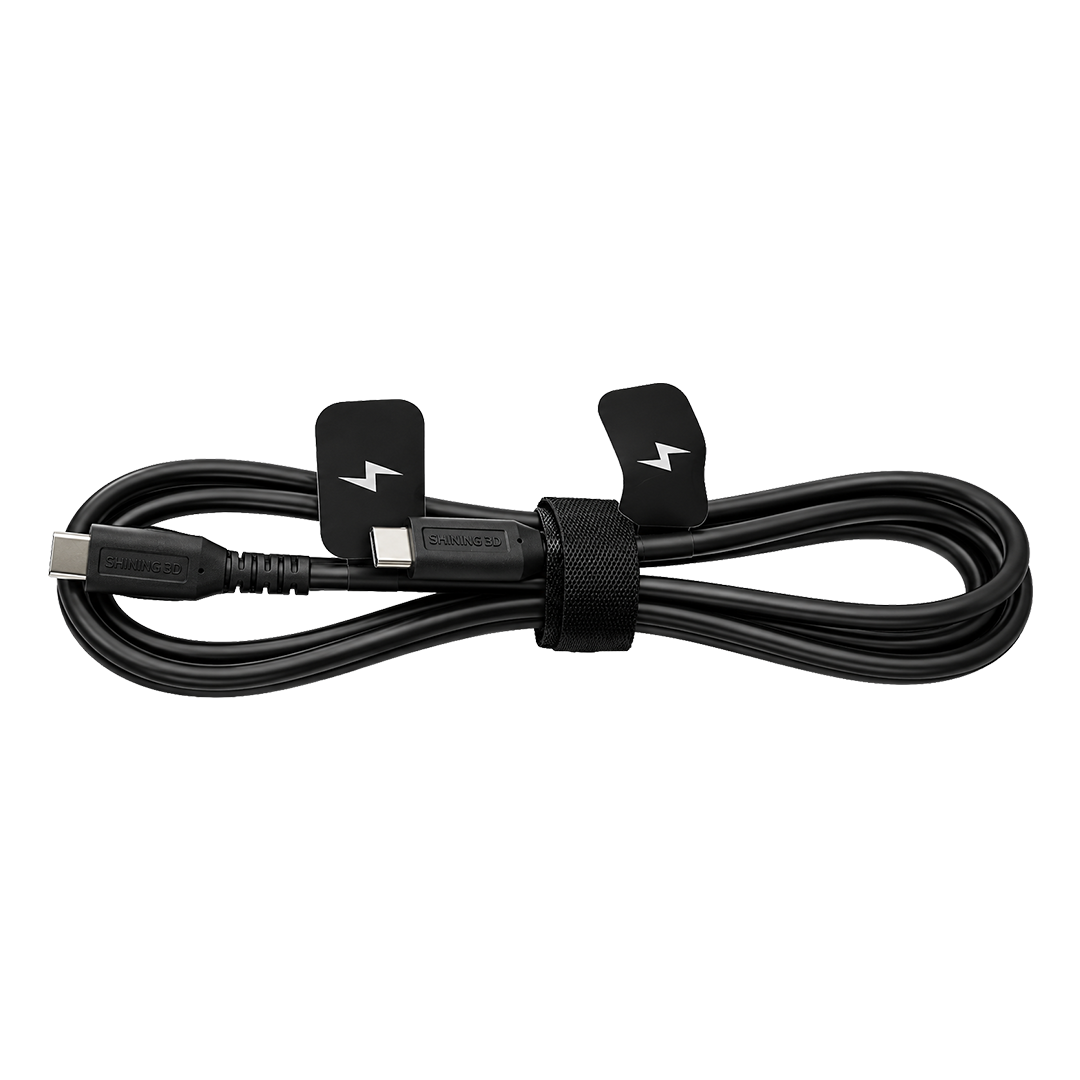

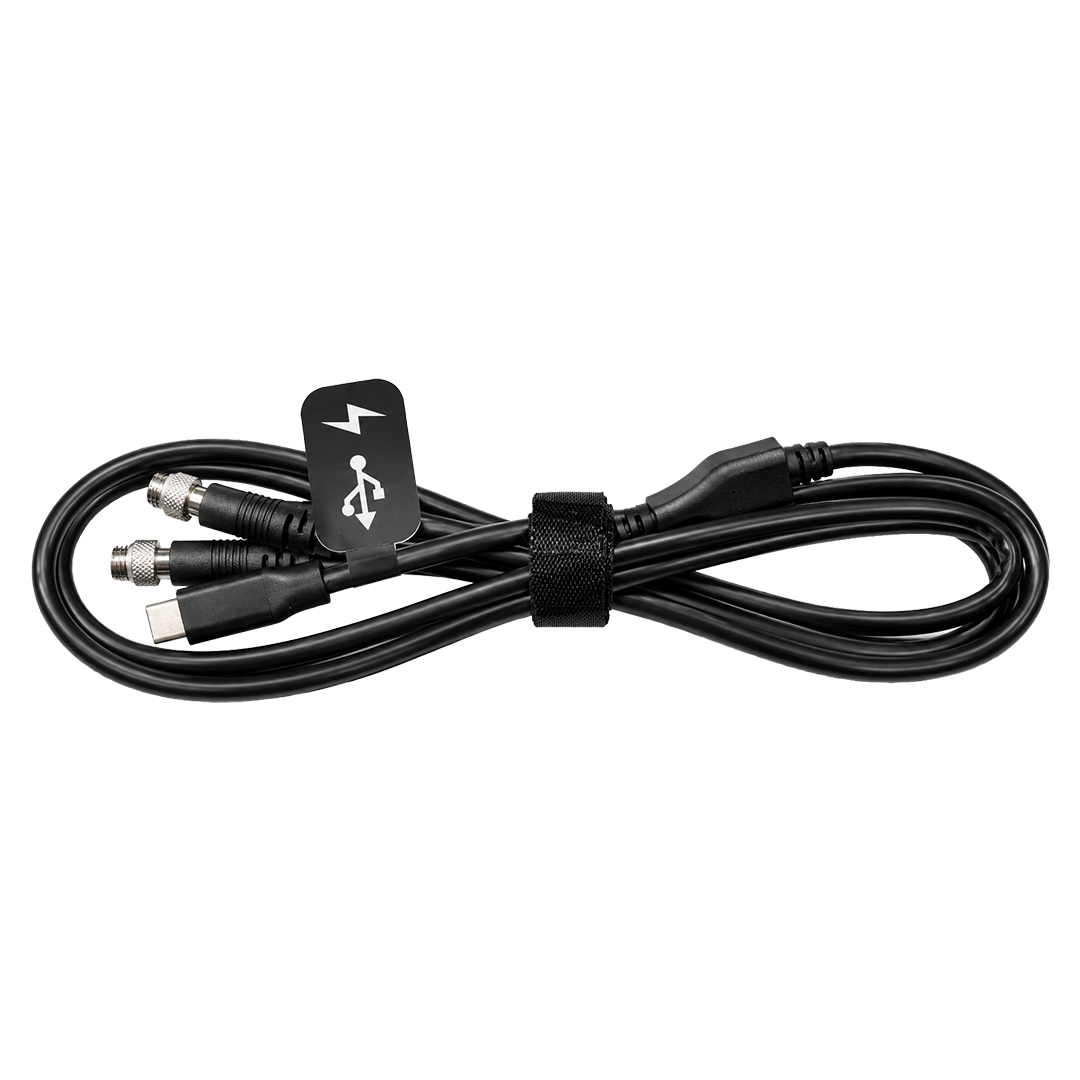

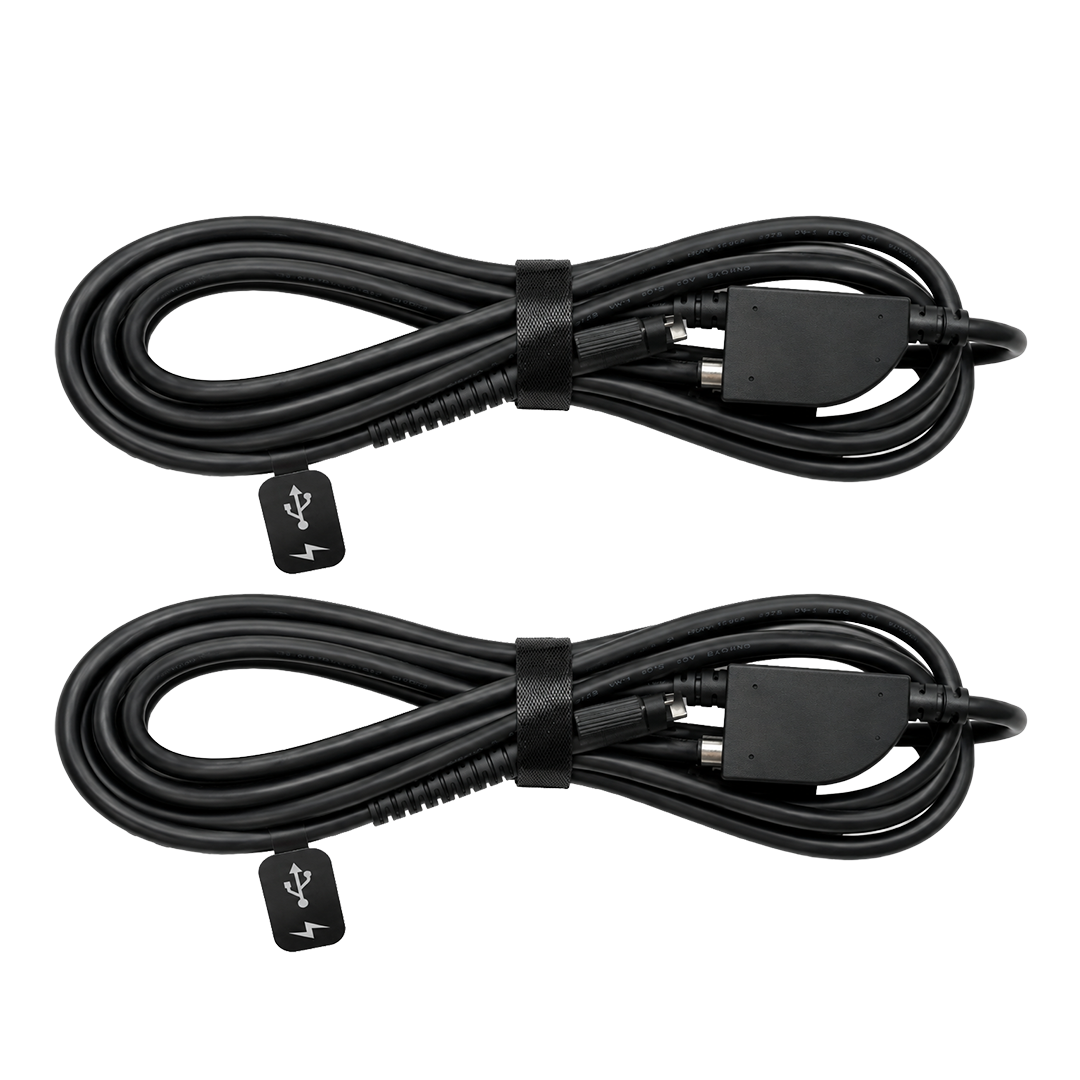

What's In The Box
